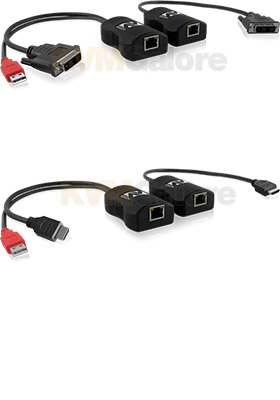

AdderLink DV Digital Video Extenders
Line powered HDMI and DVI digital video extenders over a single CATx cable, 164 feet at 1080p 1920x1200 with EDID and no external power supply
Read more below...
AdderLink DV line powered digital video extenders
over a single CATx cable, 164 feet, with no external power supply
AdderLink DV line powered digital video extenders are easy to install, highly compact video extender systems that can transmit an HD video stream over a single CATx cable. This allows you to locate your media playback hardware in a secure and temperature controlled environment. Thus, your valuable systems are kept safely away from the display point environment while maintaining precisely the same user experience.
AdderLink DV line powered digital video extenders allow you to extend DVI-D digital video or HDMI digital video with audio over a maximum of 164 feet of twisted pair cable with the minimum of infrastructure and fuss. The extenders are simply powered via USB from the local end, so that no additional power supply is required at the remote, simultaneously saving time and space as well as making installation very straightforward.
AdderLink DV line powered digital video extenders are ideally suited to the digital signage (DOOH - Digital Out-Of-Home) and audio visual (AV) industries.
AdderLink DV line powered digital video extenders use an uncompressed communication system whereby the pixels of every frame are sent without loss. Resolutions up to 1920x1200 @ 60Hz (WUXGA) and 1080p are supported. Additionally, the High-bandwidth Digital Content Protection (HDCP) of the HDMI standard is supported.
AdderLink DV line powered digital video extenders are designed to be highly power efficient, using less than an eighth of the power required by some competing systems. By harvesting power from a standard USB socket, no external PSUs are needed and hence the support infrastructure required is kept to an absolute minimum.
AdderLink DV line powered digital video extenders have intelligent EDID management to allow the true characteristics of the monitor to be passed back to the computer.
The whole AdderLink DV family of extenders share a common advantage of cross connection. The HDMI transmitters (ALDV100T) of the family can seamlessly be connected to the DVI-D receivers (ALDV120R) and vice versa.
AdderLink DV100: HDMI audio/video extender
AdderLink DV120: DVI video extender
