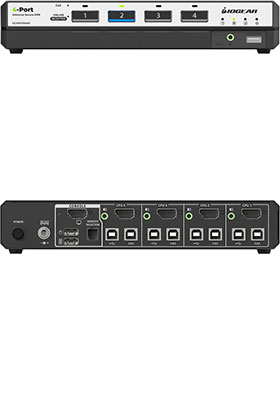

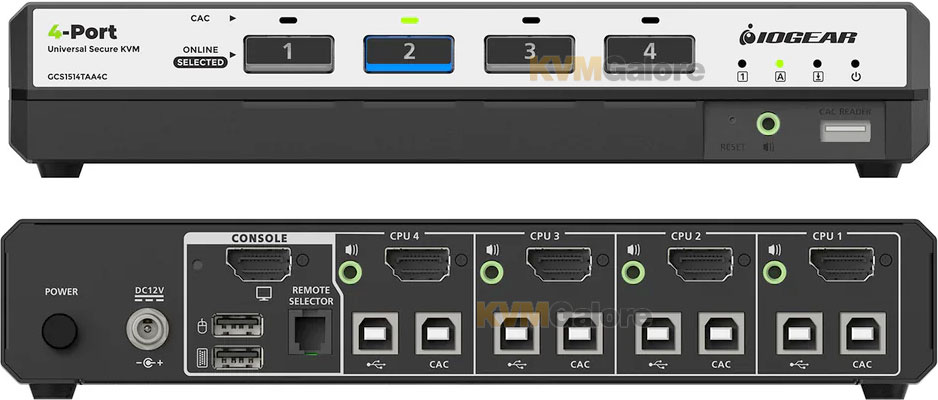

GCS1514TAA4C: Secure, 4-port, single-view, HDMI and/or DisplayPort* KVM switch

with common access card (CAC) and audio support, NIAP-certified PP4.0

• NIAP-certified PP4.0 - Validated to Protection Profile for Peripheral Sharing Device v4.0
• One USB console controls four secure computers on one display
• DisplayPort/HDMI combo connectors - Connect DisplayPort or HDMI computers and monitor without the need for adapters
• Configurable common access card (CAC) reader port supports smart cards or biometric readers
• Superior 5K Ultra-HD video resolution (5120x2880 @ 60Hz)

IOGEAR's universal secure KVM (keyboard, video, mouse) switch, with NIAP Protection Profile for Peripheral Sharing Device (PP4.0) certification, offers top-tier security for managing multiple computers.

This KVM switch prevents data leakage and unauthorized access, crucial for sensitive environments.

Beyond broad operating system compatibility, it features a specialized port design that supports both HDMI and DisplayPort inputs, providing unmatched flexibility for connecting diverse systems.

PP4.0 compliance ensures rigorous security features:
• Isolated data paths
• Unidirectional data flow
• Anti-tampering, and
• Strict peripheral filtering (e.g., only keyboards and mice).
This robust security, combined with universal connectivity via adaptable video ports, provides a highly protected and efficient solution for diverse, classified computing environments.

The 4-port universal (HDMI and/or DisplayPort) secure KVM switch with audio offers a highly secure and efficient solution for managing up to four computers with a single display.

This NIAP-certified KVM switch provides robust data isolation between shared peripherals and computers, ensuring sensitive data remains protected.

With support for DisplayPort, HDMI, and audio it streamlines operations while meeting stringent security standards.

Data Channel Isolation and Unidirectional Data Flow
IOGEAR secure KVM switch controls and isolates data flow between the console device and the connected computers preventing any data transfer between the connected computers. Data channel isolation prevents data leakage between connected computers via isolated channel per port and unidirectional data flow ensures unidirectional data flow between the console devices and the selected computer. The secure KVM switch supports analog audio via speakers only.

Active Tamper-Proof System
IOGEAR secure KVM switch hardware security is comprised of tamper-evident seals, active chassis intrusion detection, and tamper-proof hardware. Compliance with NIAP Protection Profile v4.0 certifies that non-approved USB peripherals will be rejected and cannot be connected to the secure KVM switch, providing high-level security, protection and data safekeeping.

With the combination of physical and software security, this secure KVM switch offers secure isolation to prevent internal and external access to individual system with authorization while consolidating multiple workstations with varying security classification levels.

Superior Ultra-High Video Quality
The secure KVM switch supports an exceptional 4K Ultra-HD resolution up to 5K (5120x2880 @ 60Hz).

Dedicated Common Access Card Reader Port
A fully advanced and configurable CAC reader port supports smart cards or biometric readers in compliance with NIAP-certified access accessories.

Compatible with IOGEAR Secure KVM Remote Port Selector
IOGEAR secure KVM Remote Port Selector (TAA-Compliant) enables users to securely select and switch between systems with an optional external remote port selector that provides full operator control for an optimized user experience. Easily switch between 2, 4, or 8 computer systems via the wired port selector to your secure KVM switch and use indicator lights to know which system is currently selected on the console.

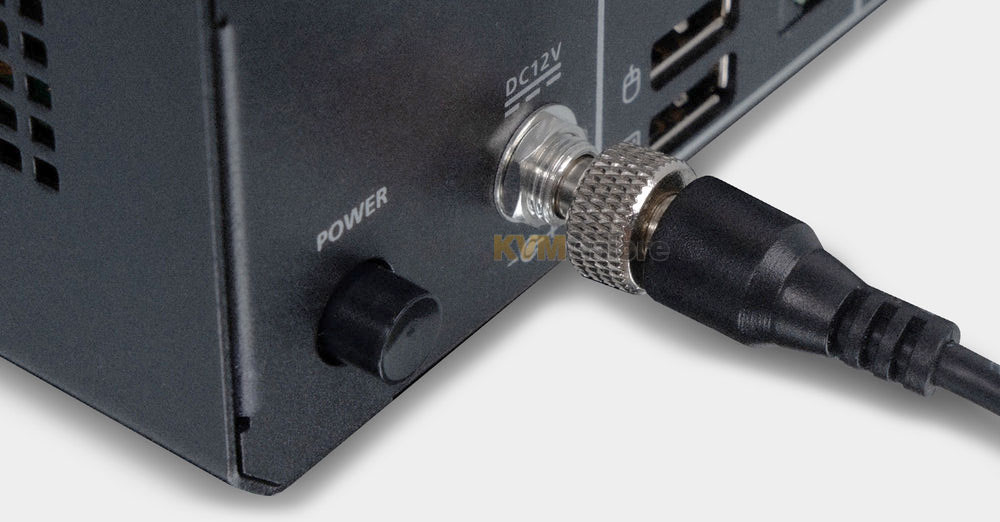

Enhanced Reliability: Easy On/Off Push Power and Secure Locking Connectors
The push switch ensures deliberate power engagement, preventing accidental cycling. The screw-locking power connector provides a robust and secure physical connection, virtually eliminating accidental disconnections from movement or vibration. This combination ensures continuous power supply and stable operation in demanding environments.

HDMI and DisplayPort Video Interface Support
Connect computers with either HDMI or DisplayPort video interface, enabling administrators' options for preventing compatibility issues with diverse secure computer ecosystem. This flexibility enables IT managers to deploy the same KVM switch across computers with different video interfaces without the need for video adapters or costly additional docking stations.

NIAP Certified, Common Criteria Compliance and TAA Compliant
IOGEAR secure KVM switch complies with NIAP PP v4.0 security certification meeting the latest security requirements from the U.S. government. The secure KVM switch also meets with the Common Criterial Compliance as part of the international Common Criteria Recognition Arrangement. The unit also meets with all TAA-compliant guidelines.

Government, Military and Commercial Applications
IOGEAR secure KVM switch provides a physical barrier that protects sensitive networks and assets from public internet exposure, granting access only to authorized users. Moreover, this KVM switch can filter or block USB ports on servers and desktop computers, ensuring that data integrity remains uncompromised. Originally designed for military and federal intelligence agencies, this secure KVM switch is now utilized by various organizations, including the FBI, CIA, NSA, Department of Defense, federal departments, state and local utilities, financial institutions, healthcare organizations, law firms, defense industries, laboratories, and more.

More Features and Benefits
• Superior ultra-high video resolution up to 5K Ultra-HD 5120x2880 @ 60hz
• Configurable port LED color and port name labels
• NIAP-certified PP4.0 - Validated to Protection Profile for Peripheral Sharing Device v4.0
• Port selection via push-buttons or optional Remote Port Selector (purchased separately - see listing below)
• Isolated channel per port - Unidirectional data flow restricts data leakage between connected computers
• Tamper-evident seals - Visually detect attempts to gain access to switch's internal components
• Tamper-proof hardware - Integrated circuits are soldered directly onto the circuit board to hinder component sabotage
• Active chassis intrusion detection - Compromising the unit's cover renders the switch inoperable
• Shared peripherals with computer isolation and DisplayPort AUX channel filtering
• Clears keyboard buffer - Data clears automatically after transmission to switch and resets
• Non-reprogrammable firmware - Prevents tampering and attempts to reprogram the switch's firmware
• Analog speaker support - Secure audio data input does not convert digital audio to analog audio
• Multiplatform support - Windows^® 2000, Vista, 7, 8, 8.1, 10, 11; Linux; Mac OS X; and Sun
• Rugged metal enclosure - Durable, full metal chassis

Package Includes
1x 4-port single-view universal (DisplayPort/HDMI) secure KVM switch
1x Power adapter
4x Foot pads
18x Port name labels
5x HDMI cable-locks (for secureing an HDMI cable to a DisplayPort/HDMI combo port, enhancing HDMI cable-connection stability and flexibility)

Required Cables (per port)
1x HDMI, male-male or 1x DisplayPort, male-male
2x USB, Type-A to Type-B
1x Audio, 3.5 mm, male-male

Need help with product selection?
Call KVMGalore at 1-800-636-3434, or submit your question on KVMGalore HelpCenter.

* Notes
1) Each connected computer's video interface may be either HDMI or DisplayPort
2) One computer may use an HDMI video connection to the switch while another computer may use a DisplayPort video connection
3) Only one video connection per computer is supported
4) Connected monitor may have either HDMI or DisplayPort video connection
5) Only one video connection to one monitor is supported
