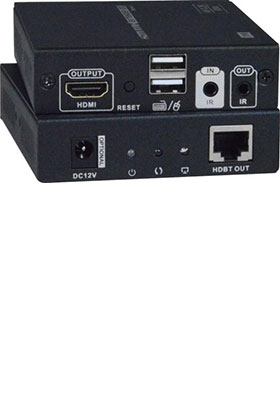

XTENDEX 4K 18Gbps HDMI USB Extender over HDBaseT

Model No. ST-C6USB4K18GB-HDBT230 In stock

XTENDEX 4K 18Gbps HDMI USB Extender over HDBaseT
Buy this item and earn 569 ClubPoints.

ST-C6USB4K18GB-HDBT230: Extend 4K 60Hz 4:4:4 HDMI display, multi-channel audio, USB keyboard/mouse and IR

over CATx up to 230 feet away from the source using HDBaseT technology


• 18Gbps bandwidth
• Only one power supply required

XTENDEX® 4K 18Gbps HDMI USB KVM extender over HDBaseT transmits uncompressed digital Ultra-HD 4Kx2K 60Hz 4:4:4 HDMI signal, USB, and IR up to 230 feet over a single CATx cable using HDBaseT technology.

Each extender consists of a local unit that connects to a computer, and a remote unit that connects to a keyboard, monitor and mouse.

HDMI Features Supported
• HDMI 2.0
• 24-bit Deep Color
• RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
• LPCM, Dolby Digital, and DTS Digital
• Bandwidth up to 600 MHz (18 Gbps)
• Support for CEC (consumer electronic control) compatible devices
• 3D
• HDR

Features and Benefits
• Transmits an uncompressed high speed HDMI signal over one CAT-6/6a/7 cable
• Supports Ultra-HD 4Kx2K resolutions to 3840x2160 @ 60Hz YUV 4:4:4, and HDTV resolutions to 1080p
• HDCP 2.2 compliant
• Bi-directional infrared remote (IR) control of HDMI source or display - IR transport channel can be forward or backward per the installation
• USB ports for keyboard and mouse
• Keyboard and mouse are hot-pluggable
• Only one power supply is necessary to power both the local and remote units

Package Includes
1x XTENDEX Transmitter unit
1x XTENDEX Receiver unit
1x 12V DC 2A power adapter
2x IR blaster extension cable
2x IR receiver extension cable
1x USB Type-A to Type-A cable

Additional Required Cables
1x HDMI cable
