ST-IPHD-L-2GOPOE: Extend HDMI and RS232 with power over Ethernet (PoE) over Gigabit Ethernet
up to 333 feet; use with cascaded network switches to extend up to 1000 feet
Note: Remote (receiver) units are purchased separately
• Visually lossless 1080p
• Use with cascaded network switches to extend to 1000 feet
• Supports 2-way RS232 commands
• No Duplicate IP addresses on 1000BaseT network
• LAN bandwidth: 180 to 500 Mbps
• Supports video wall installations from 1x2 to 16x16 screens

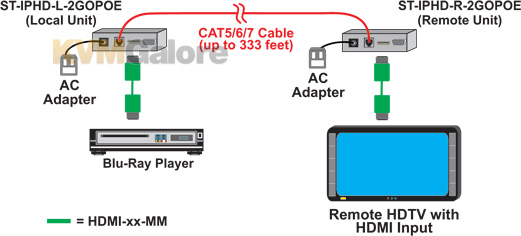

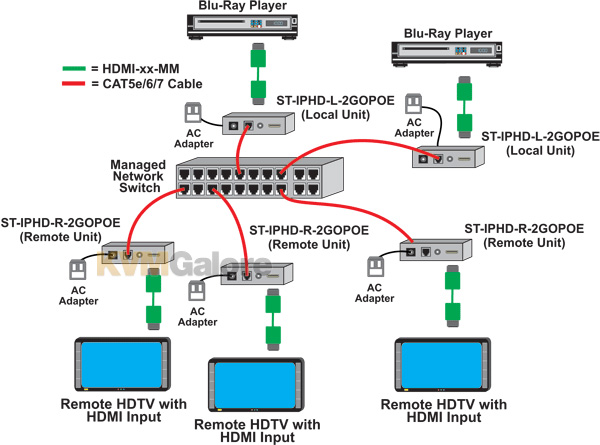

XTENDEX® HDMI over Gigabit IP extender multicasts digital video and audio signals to one or more receivers up to 333 feet away over a 1000BaseT Gigabit network connected with CAT-5e/6/7 cable. Each extender consists of a local unit that connects to an HDMI source, and a remote unit that connects to an HDMI display. The local and remote units can be connected together for a point-to-point connection via CATx cable or a point-to-many connection via a network switch. Support for multiple transmitters requires a managed network switch with VLAN/IGMP support. Standard LAN switches can only support one transmitter.
Each VLAN acts as a separate HDMI over IP channel on the network. One transmitter can connect up to 200 receivers using cascaded managed network switches.
Cascade managed network switches up to 3 levels, allowing the farthest display to be located up to 1000 feet away from the source device. Each receiver can be located up to 333 feet from the managed switch.

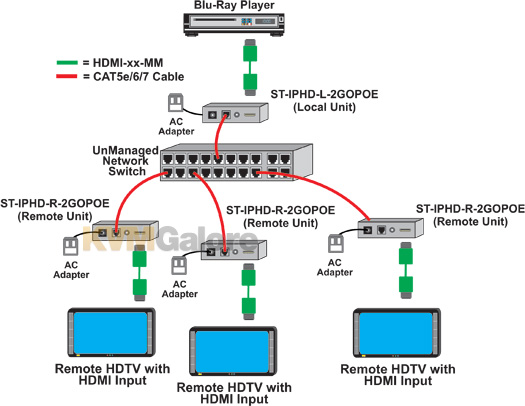

For a point-to-many connection, a standalone network with an unmanaged network switch, hub, or router can be used instead of a managed network switch. It is not recommended to use any other network devices on this standalone network as it may cause a degradation in performance.
Use a PC to access the built-in HTTP interface of the managed network switch to control what signal is being watched at each location. Use a Telnet client to access any receiver on the VLAN or network.
Features and Benefits
• Supports HDTV resolutions to 1080p
• Ideal solution for digital signage applications
• Power over Ethernet (PoE) - power supply not required at the local or remote unit
• Broadcast real-time HDMI video and audio signals to multiple display locations with a managed or unmanaged (also known as non-managed) network switch
• Transmits an HDMI signal over one CAT-5e/6/7 cable
• Supports video wall installations from 1x2 to 16x16 screens
• Plug-and-Play installation allows receivers to find the transmitter automatically on the same network (network configuration may be required for Managed network switch)
• Easily expandable. Add remote units as you add monitors
• Built-in scaler - watch compatible sources at 1080p
• Supports 2-way RS232 commands (control software on a PC, or other automated control system hardware such as Control4 or Crestron) to control any devices attached to the matrix using RS232
• Integrated mounting brackets for easy surface/wall mounting
• Inexpensive CAT-5e/6/7 cable replaces bulky video cables
• Customizable EDID table on local unit
• HDCP compliant
• Local and remote units must be in the same LAN. The units do not support WAN connections
• Warranty: Two years
