4x4 VEEMUX Low-Cost 4K HDMI Matrix Switch

Model No. SM-4X4-4K18GBA-LC In stock

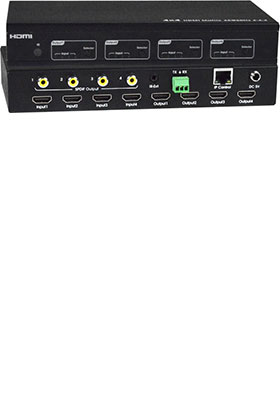

4x4 VEEMUX Low-Cost 4K HDMI Matrix Switch
Buy this item and earn 499 ClubPoints.

SM-4X4-4K18GBA-LC: Route Ultra-HD 4K 60Hz 4:4:4 HDMI video and audio signals from four video sources to four displays

VEEMUX® low-cost 4K HDMI matrix switch routes digital 4Kx2K HDMI video and audio signals from up to four HDMI video sources (computers, Blu-Ray players, satellite receivers, etc.) to up to four displays (monitors, 4K TVs, projectors, etc.).

HDMI Features Supported
• HDMI 2.0
• Dolby TrueHD, DTS-HD Master Audio, Dolby Digital, DTS 7.1 and LPCM
• YUV 4:4:4
• 3D
• Bandwidth up to 600 Mhz (18 Gbps)
• Lip Sync

Features and Benefits
• Configure and control the switch through front panel buttons, Ethernet, IR remote control, or RS232
• Supports Ultra-HD 4Kx2K resolutions (4096x2160 and 3840x2160 @24/30/60Hz YUV 4:4:4) and HDTV resolutions to 1080p
• Each input can be independently connected to any or all outputs
• HDCP 2.2 compliant
• Switch audio independently of video from connected HDMI sources (e.g. source 1 and source 2 video are active while only source 3 audio is active)
• HDMI-embedded audio switching (four-channel stereo mixing)
• SPDIF digital audio out ports for each source
• Configurable built-in EDID table
• Compact 1RU design
• Mounting kit included

Control Methods

Front Panel Interface
• Standard control method
• Configuration and control can be done using the front panel buttons
• Keypad allows selection of the input source to be routed to the desired outputs

Ethernet Control
• Standard control method
• Configuration can be done over the Internet via Web server
• Female RJ45 connector
• 10/100 BaseT Ethernet interface

RS232 Control
• Standard control method
• Configuration and control can be done through the serial port (screw terminal)
• Control the switch using the Control Program with Graphical User Interface (GUI control) via RS232 (Control software included)

Infrared Remote Control
• Standard control method
• IR control of matrix switch: The matrix switch can be controlled locally with the included IR remote using the built-in IR receiver on the switch
• Extend IR control up to 3.9 feet (1.2 meters) with IR extension cable (included)
• One female 3.5mm port for IR extension

Package Includes
1x 4K HDMI Video Matrix Switch
1x power adapter
1x IR remote
1x IR extension cable
1x Mounting kit
1x CD with software and user manual
Cables not included

Required Cables (per input/output port)
1x HDMI, male-male
