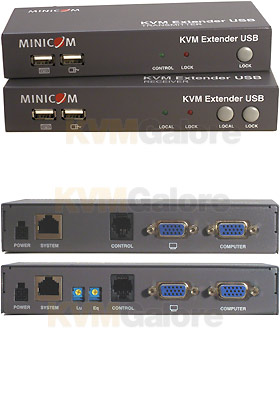

Image 1 of 7 - KVM Extender USB Transmitter, front view. The Transmitter also provides access to a local console. view
Image 2 of 7 - KVM Extender USB Transmitter, back view. The Transmitter also provides access to a local console. view

Image 3 of 7 - KVM Extender USB Receiver, front view. The receiver also provides access to a local computer offering the remote user to switch between the local and remote computers. view
Image 4 of 7 - KVM Extender USB Receiver, back view. The receiver also provides access to a local computer offering the remote user to switch between the local and remote computers. view

Image 5 of 7 view
Image 6 of 7 - User at the extended location can control and access both computers - Local user can access computer connected to Transmitter unit. view

Image 7 of 7 - User at the extended location can control and access his own computer and
all computers connected to KVM switch. Local user can access all computers connected to the KVM switch. view

KVM Extender USB

Model No. 0DT60001 In stock

KVM Extender USB
Buy this item and earn 246 ClubPoints.

0DT60001: USB/VGA KVM extender over CAT-5, 500 feet

with local-console control and a built-in 2-port switch for the remote user



KVM Extender USB, a versatile, plug and play solution, opens up options by enabling an extended physical separation between a KVM workstation and a computer or KVM switch.

A user has the luxury of working at a KVM workstation that is up to 500 feet from a computer or KVM switch.

Leverage Your Location
The KVM Extender USB makes business sense whenever there is a benefit to having a KVM workstation in a physically separate place from a computer or KVM switch. Some examples include:
• Access to computers or KVM switches centralized in one secure, environmentally controlled location, like clean rooms and kiosks
• Users who want to access a computer or KVM switch at a workstation, without having to get up and go to a server room
• A user who wants to access and control two computers, one local and one at an extended location (integrated local port)
• Two users working on two computers at the same time, with the user at the extended location (receiver) able to control and access both computers (receiver 2 port KVM switch)
• SOHO (Small Office/Home Office) environments, such as an executive and secretary, where users at two workstations control one computer

Security
The KVM Extender USB offers a unique security feature called exclusive mode, where a user can prevent the second user from accessing the computer or KVM switch at a given time.

Features and Benefits
• Compatible with any KVM switch/computer - extends console 500 feet from server room or rack
• Integrated local port
• Receiver 2 port KVM switch
• Pure hardware solution - no software/network conflicts
• Supports high-resolution video - up to 1600x1200 @ 75 Hz
• All cables included - off-the-shelf retail package, easy to maintain
• Simple to install and operate
• No external power needed at transmitter end
• Supports all major OS

Package Includes
1x KVM Extender USB Transmitter unit
1x KVM Extender USB Receiver unit
2x VGA + USB cable
1X 12V Power adapter (for Receiver)
1x Quick-Start guide
1x Screwdriver (for video adjustment)
