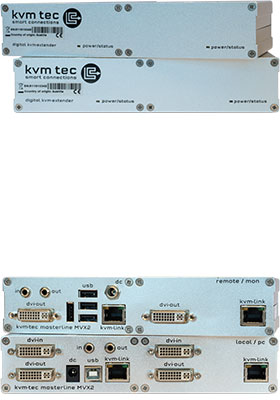

Masterline MVX2 Dual
Dual DVI/VGA + USB and audio extension over CATx (492 feet) or over fiber-optic (1640 feet) or over Ethernet network for extended distance and KVM switching & matrix configuration
Read more below...
Dual DVI/VGA + USB and audio extension system
over CATx (492 feet), or over 2-strand Multimode fiber-optic (1640 feet), or over Ethernet network for extended distance and KVM switching & matrix configuration
Masterline MVX2 Dual is optimized for state of the art signals such as dual DVI (or VGA), analog audio and USB 2.0. The transmission distance of 1640 feet over a 2-strand Multimode fiber-optic cable is completely lossless. MVX2 Masterline Dual KVM extender supports resolution of 1920x1200.
Optionally, you may connect the local (CPU) and remote (CON) units to a 1GB Ethernet network switch, which will in turn support a total point-to-point extension distance of 3280 feet (1000m).
A perfect tuning of the kvm-tec video compression with a low latency time enables the signals to be transmitted without delay. USB and video is transmitted via the same cable. The DVI extension without loss of quality allows Full HD video to be transmitted in real time.
The transparent USB 2.0 interface supports keyboard, mouse, tablets and touch screens, sound modules, printers, smartcard readers, serial adapters and more. USB save kvm-tec's security feature prevents the intrusion of computer viruses via the transparent USB interface by disabling mass storage devices support such as USB sticks and external hard disk drives.
An MVX2-MO USB 2.0 memory option is available (purchased separately) supporting USB memory stick and USB hard drive. When enabled, this option allows the use of a USB memory stick or a USB hard drive for transferring data.
With the optional MVX2-SWO matrix switching system upgrade (purchased separately), MVX2 can be used with a dedicated 1GB Ethernet network switch to create one-to-many and many-to one configurations, or even a complete many-to-many KVM matrix switching system without any additional hardware. MVX2 on-screen display (OSD) system is then used to control the connections of your matrix.
Additionally, KVM-SM48 Switching Manager kvm-tec's intelligent software (available separately) provides easy and intuitive management of all KVM extenders in the switching system.
A low cost, 3-year extended warranty is also available for a total warranty coverage of five years.
