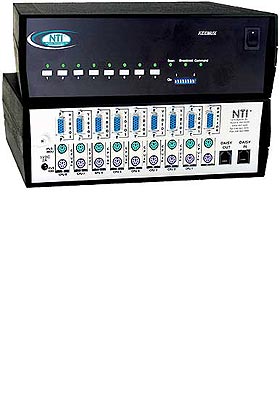

KEEMUX® PS/2 KVM switch allows one keyboard, monitor and mouse to control multiple PCs (up to 128 computers).
Dedicated internal microprocessors emulate keyboard and mouse presence to each attached PC 100% of the time so all computers boot error free.
Controlling Buttons on Front
• Touch a button and be connected to a CPU or change modes of operation.
• LEDs indicate currently selected port and mode of operation.
• Hold in any button for more than two seconds to go into Scan Mode, Broadcast Mode or Command Mode.
o Normal Operating Mode, the user can directly operate the selected computer with transparent presence of the NTI switch.
o Scan Mode feature causes the switch to automatically and sequentially display the video from each powered on computer for 2-255 seconds.
o Broadcast Mode feature allows the user's keystrokes to be sent to all powered on computers.
o Command Mode allows the user to give instructions to the switch through their keyboard. Keystrokes are not passed to the computer.
Controlling the Switch Using the Keyboard
• Press ESCAPE to leave Command Mode and return to Normal Mode
• Scan Mode, Broadcast Mode or Command Modes are available from the keyboard.
• Female DB9 connector.
• Baud rate 300 through 9600, DIP switch selectable.
• Use DIP switches to address up to 15 units, all of which can be daisy chained and controlled by one serial port.
• Seven segment displays show what input is connected to each output.
• RS - causes switch to reset so that IN1 connects to OUT1, IN2 connects to OUT2, etc.
• CS - Causes one INx/OUTx connection to occur.
• CA - causes all inputs to connect to specified output.
• RO - reads what input is connected to specified output.
• RU - Reads size of matrix, reports number of inputs and number of outputs on specified switch.
On-Screen Display (OSD)
• Select computers by name with On-Screen Display (OSD).
• Use keyboard or mouse to operate the switch from menus superimposed onto your monitor.
• Control, Scan, and Broadcast functions.
• View vital port information.
• Search for ports by name.
• Search Mode lets the user type in the first few letters of the computer's name and the OSD will locate it.
• Names can be up to 12 characters long.
• View names of computers on cascaded switches up to 128 ports.
• Modify the size and position of the On-Screen Display.
• Help Screens assist users with the OSD.
• OS and software independent.
• OSD comes built into the switch — no need to install additional hardware or software.
Security Features Built into OSD
• Advanced security included with switch.
• Each user password and name can be up to 15 characters long, and each switch can store up to 63 users.
• Administrator can enable or disable all security features and select which computers each user can access.
• Once security is enabled, a user or administrator must login in order to access any of the computers connected to the switch.
• Control all network computers from one office
• Auto scan all computers to catch system failures early
• Improve manageability of your computer room — eliminate extra cables, monitors, keyboards and mice
• Compatible with IntelliMouse®
• Compatible with Sun Fire™ V20z
• Compatible with all PS/2-style PCs and laptops, HP9000, Silicon Graphics and IBM RS6000 workstations
• Broadcast keystrokes to all computers for simultaneous shut-downs
• Cascade smaller KVM switches together as your network grows-up to 128 ports
