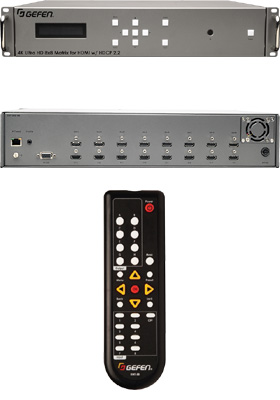

EXT-UHD-88: Routes eight (8) 4K sources to any combination of up to eight (8) 4K displays
Gefen 4K Ultra HD 8x8 Matrix for HDMI routes eight 4K sources to any combination of up to eight 4K displays. Resolutions up to 4K Cinema-DCI (4096x2160 at 24 or 30 Hz 4:4:4) and 4K Ultra HD (3860x2160 at 60 Hz, 4:2:0 or 30Hz 4:4:4) are supported. This product is compliant with the latest HDCP 2.2 protocol as well as HDCP 1.4.
This Gefen 8x8 matrix also supports 1080p Full HD, 1920x1200 (WUXGA), 3DTV, and Deep Color (up to 1080p resolution).
Multichannel digital audio including 7.1 channels of LPCM and HBR (High Bit Rate) digital audio formats such as Dolby® TrueHD and DTS-HD Master Audio™ are also passed through.
Gefen Syner-G™ software' s Discovery and Show-Me features simplify initial IP configuration. Each source can be routed to any or all displays, using the front-panel push buttons or the included handheld IR Remote Control.
The matrix can also be controlled via RS-232, Telnet, UDP, and Gefen's intuitive and easy-to-use web server interface. An easy-to-read, super-bright OLED front panel display indicates routing status and IP settings.
Features and Benefits
• Routes eight 4K sources to eight displays
• Supports resolutions up to 4K Cinema-DCI (4096x2160 at 24 or 30 Hz), 4K Ultra HD (3860x2160 at 60 Hz, 4:2:0 color space),1080p Full HD, and 1920x1200 WUXGA
• HDCP 2.2 and 1.4 compliant
• Supports 12-bit Deep Color (up to 1080p Full HD)
• 3D pass-through
• Lip Sync pass-through
• Push button controls for routing and status
• Advanced EDID Management for rapid integration of sources and displays
• Supports LPCM 7.1, Dolby® TrueHD, Dolby Digital® Plus, and DTS-HD Master Audio™
• Supports the use of DVI sources and DVI displays with HDMI-to-DVI adapters (not included)
• RS-232 serial interface for use with an automation control system
• IP control via Telnet, UDP, and the built-in web server interface
• IR remote control
• Gefen Syner-G™ software's Discovery and Show-Me features simplify initial IP configuration
• Field-upgradeable firmware via web server interface
• Can be placed on a shelf or mounted in a standard 19-inch wide rack
(1) 4K Ultra HD 8x8 Matrix for HDMI w/ HDCP 2.2 (EXT-UHD-88)
(1) IR Remote Control (RMT-88)
(1) 24V DC Power Supply (EXT-PS24U-O)
(1) AC Power Cord (CAB-POWERCORD-XX)
(1) Quick-Start Guide (QSG-EXT-UHD-88)
