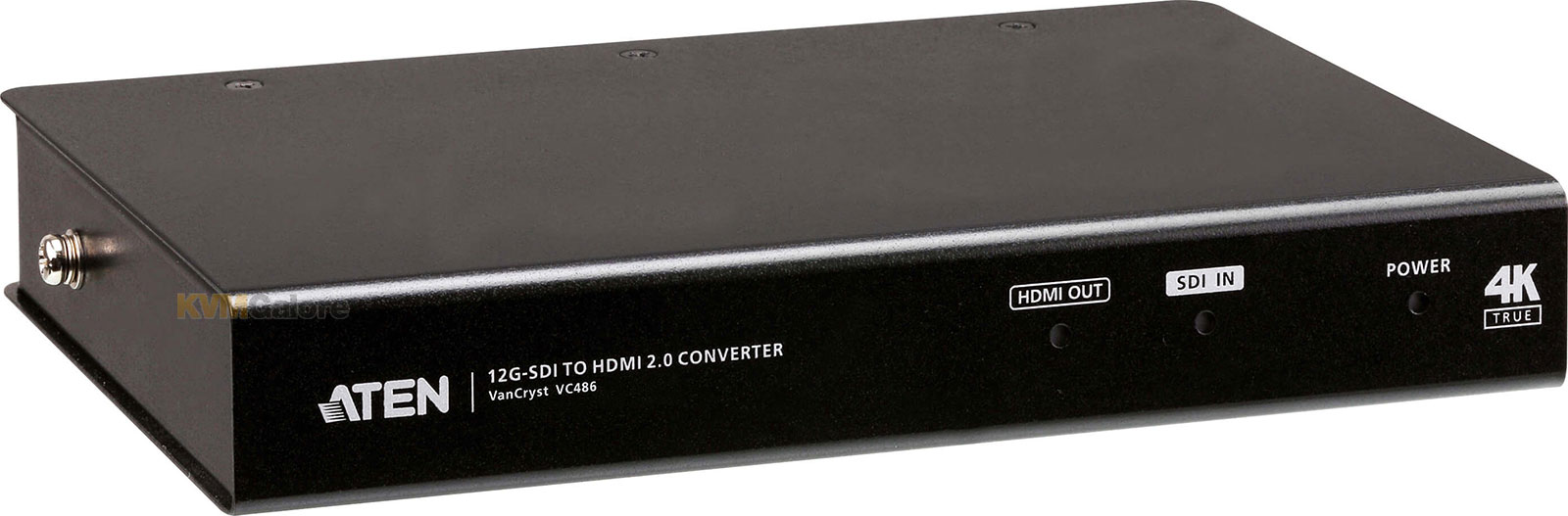

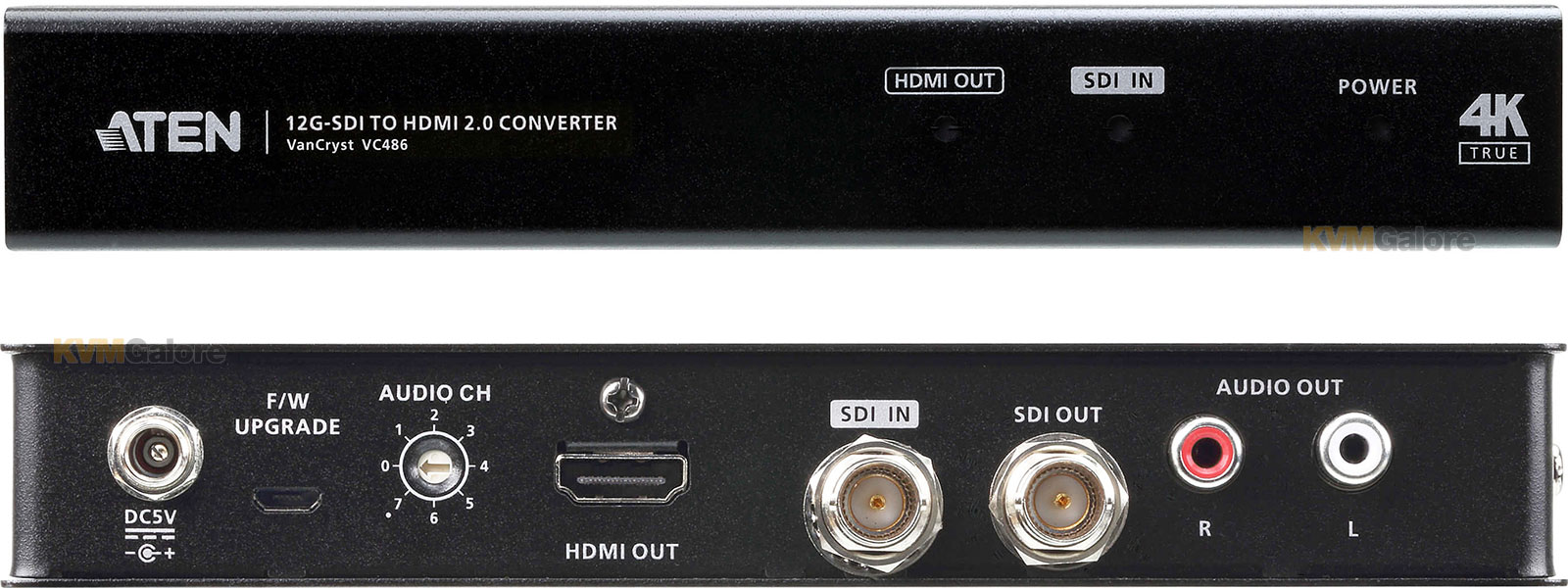

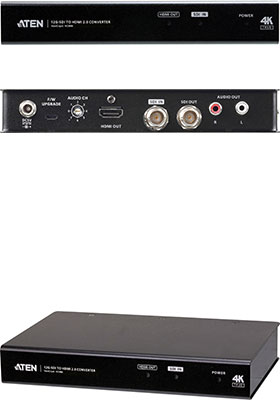

12G-SDI to HDMI converter

• Converts HD/3G/6G/12G-SDI input signals to an HDMI output in real time
• SDI signal re-clocked for high signal quality
• Supports SDI standard SMPTE-292/424/425-3/2081/2082
• Supports analog stereo audio output with RCA (R/L) connector

VC486 is a 12G-SDI to HDMI 2.0 vonverter that converts HD/3G/6G/12G-SDI input signals to an HDMI output in real time.

It supports various transmission distances depending on different SDI formats, including 147 feet (12G-SDI), 197 feet (6G-SDI), 295 feet (3G-SDI), and 492 feet (HD-SDI), offering the flexibility for professional video projects.

In addition, the converter works with ATEN VC486 configuration software, allowing users to configure the device's input, output, and audio settings with ease.

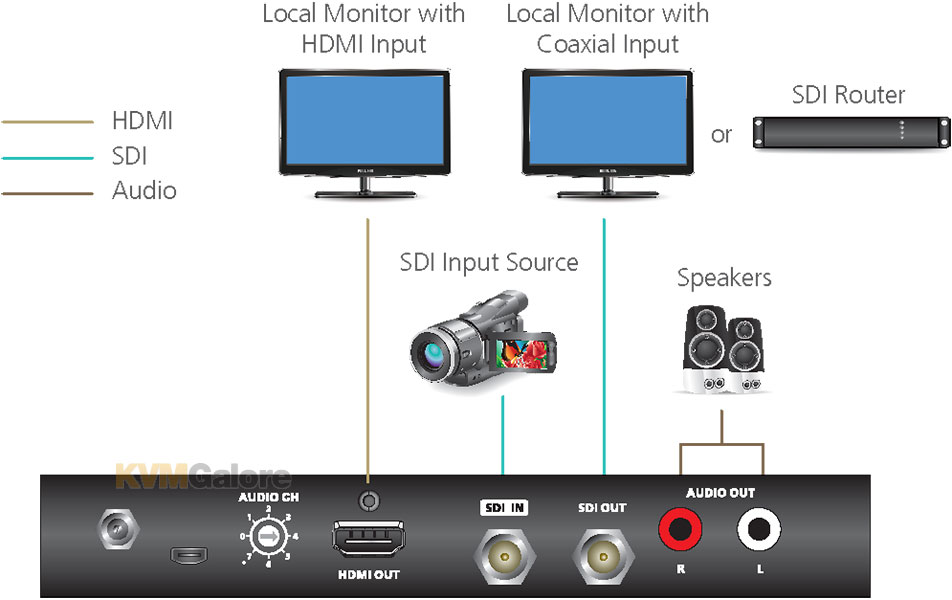

VC486 is a perfect choice for converting SDI signal to HDMI for applications such as broadcasting, medical imaging and industrial inspection.

Supported SDI formats
• HD-SDI (SMPTE 292M, 296M, up to 1.485 Gbps)
• 3G-SDI (SMPTE 424M, 425M level A and B, up to 2.97 Gbps)
• 6G-SDI (SMPTE 2081-1, SMPTE 2081-10, up to 6 Gbps)
• 12G-SDI (SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1 and SMPTE 2082-10, up to 12 Gbps)

Features and Benefits
• Supports an SDI distance of up to 147 feet (12G-SDI), 197 feet (6G-SDI), 295 feet (3G-SDI) and 492 feet (HD-SDI)
• Automatic detection of input video signals
• Analog audio channel selection with a 8-step rotary switch
• Locking power connector

Package Contents
1x VC486 12G-SDI to HDMI converter
1x Power adapter
1x HDMI LockPro cable
4x Foot pads
1x User instructions
