UH3230

Model No. UH3230 In stock

UH3230
Buy this item and earn 160 ClubPoints.

USB-C multiport dock with power charging

turn your laptop into a multitasking workstation

UH3230

• Connect up to 8 devices to a laptop through a single USB-C cable
• Supports HDMI 2.0 with 4K (Ultra-HD) resolutions or DisplayPort 1.2 with 4K (Ultra-HD) resolutions
• Supports dual monitors in mirror and extended mode
• Supports USB Power Delivery 2.0 for charging a laptop via USB-C port

UH3230UH3230 connects all the devices you have ever wanted to transform your everyday USB-C or Thunderbolt™ 3 laptop into a more advanced desktop computer - in an instant.

There's no need to carry or reconnect multiple cables every time you return to your desk, which means you can spend more time working or playing and less time concerned with setup.

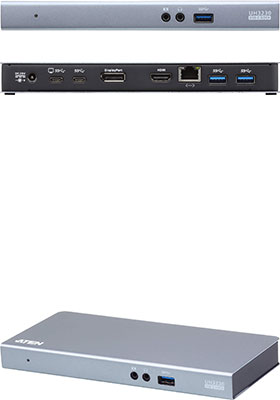

UH3230 provides eight peripheral ports - USB-C, Gigabit LAN, DisplayPort with Multi-Stream Transport*, HDMI, audio and three USB 3.1 Gen 1 ports - through a single USB-C cable. The front panel USB 3.1 port is ideal for high speed data transfers and quickly charging portable devices.

UH3230 supports single display up to 4K resolutions via DisplayPort or HDMI and dual monitors in mirror and extended mode at resolutions up to 1080p.

UH3230 routes video from a source computer to a DisplayPort or HDMI monitor via single cable while maintaining the highest quality 4K resolution. The multiport dock supports dual monitors in mirror and extended mode.

UH3230 supports USB-C Power Delivery 2.0, which provides power to matched USB-C laptops with PD profile specifications of 20V/3A, 20V/1.8A, 12V/3A, and 5V/3A.

Features and Benefits
UH3230• Connect up to 8 devices to a laptop through a single USB-C cable
• Supports HDMI 2.0 with 4K (Ultra-HD) resolutions**
• Supports DisplayPort 1.2 with 4K (Ultra-HD) resolutions**
• Analog audio line-in and line-out
• Gigabit LAN port
• Supports dual monitors in mirror and extended mode***
• USB 3.1 Gen 1 front panel port supports Fast-Charging
• Supports USB Power Delivery 2.0 for charging a laptop via USB-C port; supported power profiles include 20V/3A, 20V/1.8A, 12V/3A, and 5V/3A

Package Contents
1x UH3230 USB-C Multiport Dock
1x USB-C Cable
1x AC Power Adapter with Cable
1x User Instructions

* Multi-Stream Transport is not supported by the Mac OS X, and only one additional video output can be utilized for extended desktop under the Mac OS.
** With Intel 7th generation Core Processor (Kaby Lake) and above. For video output to work through a USB-C port, it must support DP Alt Mode. For dual-view to work, a computer's graphics card must support MST technology.
*** Mac computers only support single-view output.
