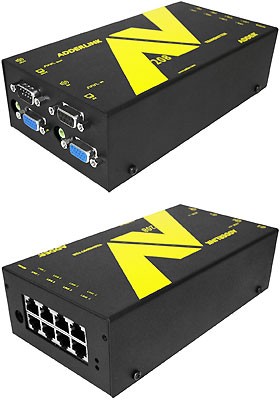

ALAV208T: 8-way transmitter for audio-video streaming
AdderLink AV200 Series is a range of audiovisual extenders delivering high video resolutions, superb quality audio and RS232 up to 1000 feet using standard CATx cable (x=5,5e,6,7).
With full RS232 support video display panels can be controlled and interrogated remotely, making AdderLink AV200 series the ideal professional narrowcast digital signage solution.
The innovative design allows for flexible audiovisual distribution, management, control and interaction with the display devices which can be expanded to grow in line with project developments.
AdderLink AV200 series is supplied complete with Adder DM (Display Manager) software. This advanced application makes controlling VDU power, video and audio possible from the transmitter, as well as allowing you to interrogate video panel status and dynamics.
Consisting of 5 interchangeable units, the AdderLink AV200 Series makes the design of digital signage and narrow casting applications cost effective, flexible and easy to plan.
Finely adjustable cable equalisation amplifiers enable the video sharpness and brightness to be independently adjusted using the dials on the side of the receiver units.
Display Management via RS232
Included with AV200 transmitters, the Display Management Software gives users control and interaction with display devices over the integrated RS232 ports. This allows for bi-directional and automated communication with individual screens, groups of screens or all screens at the same time.
The remote and local units are fitted with two indicators; red shows the presence of power into the module, green indicates the presence of a video input.
Transmitted as digital signals to ensure high fidelity and low noise levels. Phase locked sampling clocks ensure that there are no unwanted clicks when no sound is being played.
Rack Mount Options
Both the local (computer-end) and remote (display-end) units may be rack mounted in the AdderLink AV Series rack mount chassis. The chassis enable 8 units to be mounted in 3U of 19-inch rack space. The units are rack mounted using the optional rack mount faceplate.
Features and Benefits
• Crystal clear digital audio quality at 44.1kHz Stereo
• Crisp, sharp, fully saturated video quality even at 1000ft
• Resolution up to 1600x1200@60Hz
• Compact size
• Compact rack-mountable chassis for large installations
• Receiver units with fully adjustable de-skew ensuring maximum video quality
• Cascade transmitters to support up to 64 VDUs from a single source
• Dual video/audio output on the receiver supports back to back monitors applications
