ST-FO4K10GB-LC: Extend an HDMI display via one LC fiber-optic cable
up to 6,561 feet (Singlemode) or 984 feet (Multimode)

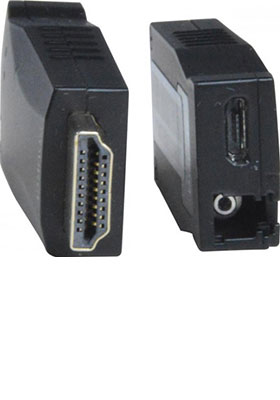

XTENDEX® 4K 10.2 Gbps HDMI extender via fiber optic cable locates an Ultra-HD 4K 30Hz 4:4:4 HDMI display up to 6,561 feet (2,000 meters) away via a simplex LC singlemode fiber optic cable or 984 feet (300 meters) using an LC multimode fiber optic cable. Each extender consists of a transmitter that connects to an HDMI source, and a receiver that connects to an HDMI display.
HDMI 1.4 Features Supported
• Up to 36-bit Deep Color
• Dolby Digital, LPCM, DTS-HD and DTS
• YCbCr 4:4:4, YCbCr 4:2:2, and RGB
• Bandwidth up to 10.2 Gbps
• 3D
Features and Benefits
• Signal transmission via single-strand singlemode or multimode LC fiber optic cable
• Using Singlemode 9-micron cable, extend HDCP-encrypted video signal up to 984 feet (300 meters) and unencrypted video signal up to 6,561 feet (2,000 meters)
• Using Multimode 50-micron cable, extend to 984 feet (300 meters)
• Supports Ultra-HD 4K resolution up to 4096x2160 @ 30Hz YUV 4:4:4, and HDTV resolutions to 1080p @ 60Hz
• HDCP 1.4 compliant
• EDID pass-through for the support of any HDMI display device
• Compact design - allows for direct connection to source/display
• Cables can be installed in conduit prior to extender installation
• Supports Plug-n-Play specifications
• Low RFI/EMI for sensitive applications
