StreamLIVE HD - Model No. UC9020 - KVMGalore® | Tech Solutions Made Easy™
  • MSRP $314.00
  • Savings$79.00
  • Our Price $235.00
For additional views click on an image below
Image 1 of 5 view
Image 2 of 5 view

Image 3 of 5 - Shown iPad is not included. view
Image 4 of 5 view

Image 5 of 5 view


Model No. UC9020 Usually ships in 7-10 business days or less

Buy this item and earn 235 ClubPoints.

UC9020: All-in-one multi-channel audio/video mixer


• All-in-one design to simplify streaming workflow, integrating 1080p video capture, video switch, streaming encoder, video converter, video splitter, and audio mixer
• Professional-quality live streaming to global audiences by any CDN platform , with a low entry threshold, even entry-level users can quickly get started
• Intuitive app for preview and program monitoring, change video layout in Full Screen/PBP/PIP settings, adding image and subtitles overlays, and smooth scenes transitions for a professional finish

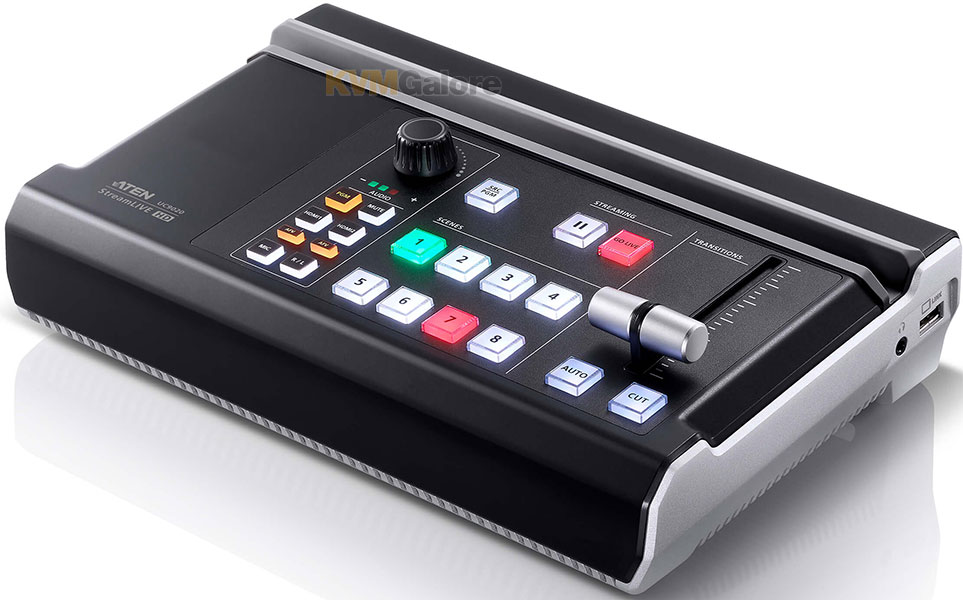

• Compact mixer control panel – switching and mix between multiple video and audio sources with the help of easily identifiable luminous keys

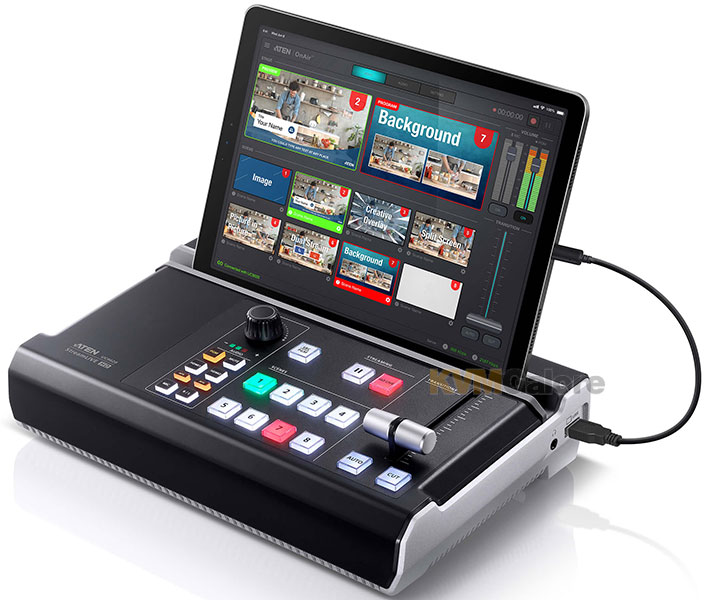

UC9020StreamLIVE™ HD is a portable, all-in-one, multi-channel audio/video mixer device that integrates a 1080p video capture, video recorder, video switch, stream broadcaster, video converter, video splitter, and audio mixer into one compact box to eliminate the hassle of working with different AV equipment. StreamLIVE™ HD makes HDMI video sources broadcast for higher quality live stream to CDN platforms such as YouTube Live, Facebook, and Twitch.

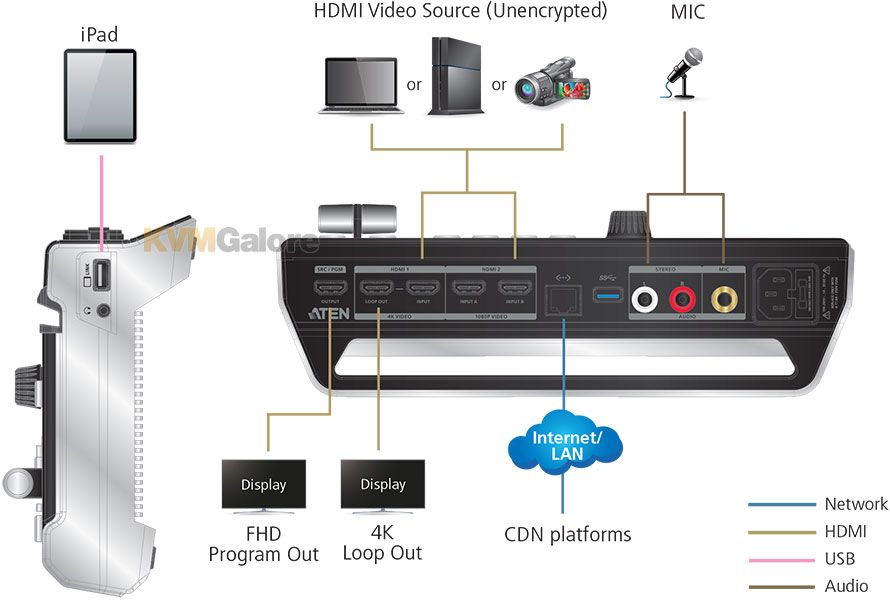

For added convenience, StreamLIVE™ HD provides an intuitive app, making it easy to monitor, edit image layouts, and adjust PIP settings. StreamLIVE™ HD is PC and software-free, and with its well-designed control panel, it makes livestreaming operations smooth and effortlessly. You can even preview video and monitor audio levels before going live with your web broadcast! To get started, simply connect video/audio sources, and an Ethernet with an ATEN app-installed iPad, and you are ready to roll.

Whether you're capturing, editing or streaming, StreamLIVE™ HD with its ergonomic and practical design, it is flexible enough to fit all independent live streaming broadcasting environments. With a rich feature set, StreamLIVE™ HD addresses the challenges that independent live streaming broadcasters encounter and provides an easy-to-use solution.

All-in-one, Made as Simple as Possible
Create a professional, dynamic multi-camera production with UC9020 StreamLIVE™ HD. It is the simplest, all-in-one TV-quality livestreaming studio that is small in size and big on capability. Everything you need for livestreaming is ready to just plug-n-play. No computer, monitor, or complicated software settings necessary. Capture, stream, and switch between two full HD video inputs over the Internet and instantly take your video production to the next level.

Intuitive, from Start to Finish

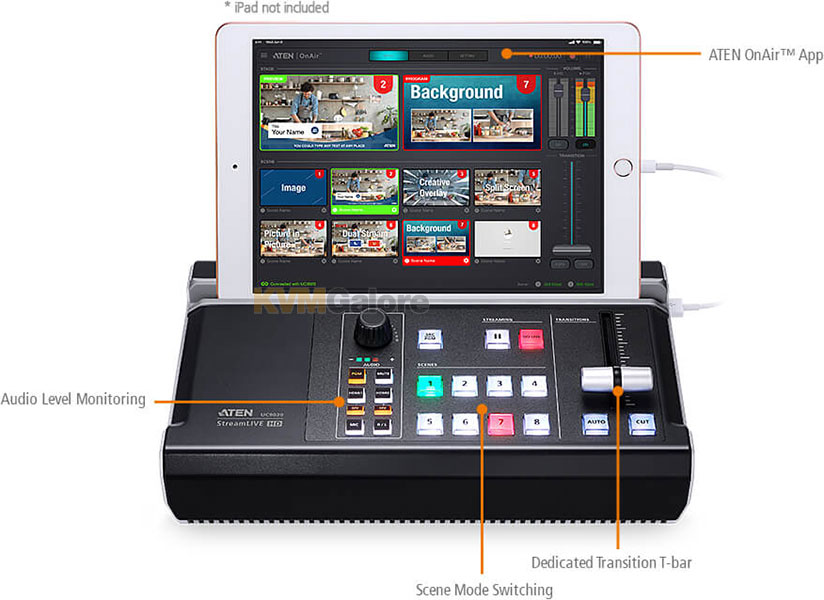

Every inch of StreamLIVE™ HD has been optimized for the easiest operation, including the hardware control panel and the powerful yet sophisticated control APP, that turns your iPad* into a touch interface for controlling, preview monitoring, real-time editing, and arranging multi-elements into program mixing. You can switch and mix video/audio, change settings and effects, and save up to 8 scenes for quick switching.

UC9020Go LIVE, to Every Major Platform Anywhere
With the built-in encoder and streaming server, all you need to do is connect to your video sources and network. StreamLIVE™ HD is compatible with every major platform and can livestream to two platforms at the same time virtually anywhere, including Facebook, YouTube, Vimeo, Livestream or any custom RTMP destination, all in high-quality full HD.

Goodbye Post-Production
Your iPad becomes your personal video editing suite. With ATEN OnAir™ app you can design and preset up to 8 custom scenes with the intuitive touchscreen interface and custom scene editor. Combine, crop, and scale video to make outstanding PnP layouts. Add transparent png images, backgrounds, and text overlays with professional-looking effects. The scene presets can be exported and shared with your community to other StreamLIVE™ HD systems.

4.2 lb, That's Everything You Need for Streaming
Designed to simplify your video production workflow, StreamLIVE™ HD is not only all-in-one to reduce equipment and cabling that you need to carry for streaming, but also compact in size with extreme portability. It is just so easy to setup and transport. You will be relieved from heavy equipment and complex setups. Use StreamLIVE™ HD whenever you need to stream and it will become your indispensable companion for live video production.

UC9020Features and Benefits
• 1080p Recording – features a media recording that can be used to record a program and save recordings directly to a connected external hard drive or flash drive via USB
• PC-free and software-free with plug-n-roll capability
• Storyboard-like management – preset up to 8 scenes for later while streaming and during performances to reduce the need to interact with hardware
• Fanless and optimized thermal air flow system for quiet operation
• Multitask designed handle-stand to enhance portability and ergonomic comfort angle

Package Contents
1x StreamLIVE™ HD
1x USB Type-A to USB Type-C Cable
1x USB Type-A to USB Type-A Cable
1x AC Power Cable
1x User Instructions

* For detailed iPad compatibility please refer to specifications
