8x8 HDMI scaling matrix switch and video wall
with fast switching

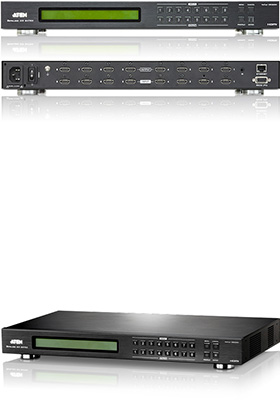

VM5808H 8x8 HDMI matrix switch is a distinct HDMI solution that offers an easy and affordable way to route any of 8 HDMI video sources to any of 8 HDMI displays, with a quick view of all port connections via the front panel LCD.
VM5808H includes seamless switching that employs a FPGA matrix architecture that ensures continuous video streams, real-time control and stable signal transmissions. With a built in high-performance scaler, VM5808H easily converts various input resolutions into various output display resolutions, giving viewers the best video and picture quality across all displays. The switch integrates video wall functionality with an easy to use web GUI that lets you create 16 connection profiles that can be customized into different video wall layouts.
VM5808H is an ideal solution for applications that require multiple HDMI displays with multiple HDMI sources to be conveniently setup in multiple locations, such as for stage presentations, competitions, control centers, and installations that require real-time reports.
Configuration and Control
• Front panel LCD display and pushbuttons
• IR Remote Control
• Browser Graphical User Interface (GUI)
• Serial controller
Features and Benefits
• Connects any of 8 HDMI sources to any of 8 HDMI displays
• Long Distance Transmission – supports up to 15m (24 AWG)
• HDMI (3D, Deep color); HDCP 1.4 compatible
• Video Wall – provides up to 16 connection profiles that you can customize into layouts using the web GUI
• Features a built in high-performance scaler for the best image quality
• Easily switch between mulitple sources and multiple displays
• Seamless Switch – provides continuous video streams, real-time switching and stable signal transmissions*
• Built-in EDID wizard – provides an easy way to customized EDID settings
• Built-in bi-directional RS-232 serial port for high-end system control
• Superior video quality – HDTV resolution of 480p, 720p, 1080i and 1080p (1920x1080)
• ESD protection for HDMI
• Supports Dolby True HD and DTS HD Master audio
• Consumer Electronics Control (CEC) support
• Power On Detection – If an HDMI source is powered off the VM5808H automatically switches to the next powered-on source
• Supports IR signals for remote control
• Firmware Upgradeable
• Rack Mountable
1x VM5808H 8x8 HDMI Matrix Switch with Scaler
1x Power Cord
1x IR Remote Control
1x IR Receiver
1x Mounting Kit
1x User Instructions
Cables not included
* If Seamless Switching is enabled, the video output will not display 3D, Deep Color or interlace (i.e., 1080i) resolutions. To make these features available, you must disable Seamless Switching.
