DVI KVM over IP (slim) transmitter
Note: Receiver units are purchased separately
Utilizing expertise in Over IP KVM solutions, KE6900 series is an IP based DVI KVM Extender that allows access to a computer system from a remote USB console (USB keyboard, USB mouse, DVI monitor) anywhere over an intranet.
The DVI KVM Over IP Extender consists of a Transmitter unit that connects to the computer and a Receiver unit that provides console access from a separate location. The computer is accessed from the remote console over a standard TCP/IP network via CAT-5e cable that allows point-to-point, point-to-multipoint, and multipoint-to-multipoint administration. This is perfect for use in any type of installation where you need to place the console where it is convenient, but you want the computer to reside in a secure location - away from the keyboard, mouse and display in use.
As a Matrix Extender it can connect single/multiple (computers-to-consoles) in several ways:
• One-to-one (Extender mode)
• One-to-many (Splitter mode)
• Many-to-one (Switch mode), or
• Many-to-many (Matrix mode).
KE Matrix Manager® software provides advanced features for username/password authentication, autodetection of all KE6900 devices on the same subnet and define connections that can be switched and shared. New security features also provide extra protection, supporting AES-128bits encryption for secured data transmission, while RADIUS, LDAP, AD or remote user authentication provides added layer of connection security.
Download KE Matrix Manager® Lite (supporting up to 16 end-points) for FREE!
With an OSD, RS-232 support, and Auto MDIX, KE6900 is the most cost-effective and convenient way to get a full digital extension from anywhere on the intranet.

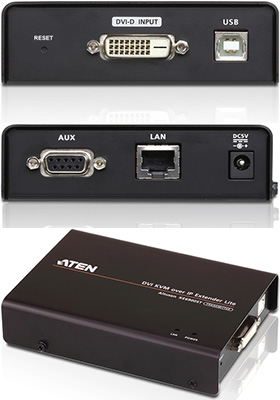

KE6900ST is a compact and affordable slim transmitter which can be paired with any KE69x0R unit for a savings based solution that stays within budget. Compared with other KE69x0T transmitter models, KE6900ST is...
• Lower cost
• Supports DVI-D (not DVI-I)
• Doesn't support vUSB (for touch-panel)
• Doesn't support a local console
Video and KVM over IP
Extend the computer's KVM console any distance over a LAN connecting the Tx and Rx units to your network. Extend computer's KVM console up to 330 feet by directly connecting the Tx and Rx units with a single CAT-5e cable.
KE6900 series allows you to access, share, and switch full control of Tx connected computers from any Rx (KVM console) on the network.Flexibility allows one-to-one, one-to-many, or many-to-many computer to KVM console connections.
Unprecedented Video Quality
ATEN's advanced graphics processor delivers video that ensures you will experience the same vivid and sharp quality video on the remote monitor no matter how far away the console is located.
Advanced Management Sysyem
KE Matrix Manager allows you to easily administer all KE6900 devices over a network, using an intuitive and user-friendly web-based GUI.
Extender mode: this is the simplest setup; using a single transmitter to receiver connection that extends a computer's distance from the keyboard, mouse and monitor. One-toone setup can be directly connected by a CAT-5e cable between two units - up to 330 feet.
Shared connection: This setup over a network allows a remote computer (Tx) to be shared among multiple KVM consoles (Rx). Multiple KVM consoles can access the computer at the same time and you can define the access mode when this happens.
Switching connections: This setup over a network allows the KVM consoles to switch access between different computers individually and symultaneously, and allows the streaming of video, USB and serial connections from different computers.
Matrix mode: Delivering flexibility and performance ATEN's KVM over IP Extender provides the ability to access, switch, share and multicast computer resources among multiple KVM consoles across a network. This provides dynamic and flexible extender setup with superior video quality and smooth KVM operations without delays or lags.
Features and Benefits
• Remotely access computers on your KVM installation via intranet
• RS-232 serial ports – allows you to connect to a serial terminal for configuration, and serial devices such as touchscreens and barcode scanners
• Superior video quality – up to 1920x1200 @ 60 Hz; 24-bit color depth
• OSD (On Screen Display) on the Receiver configures both units
• Supports AP GUI operation
• Remote login security
• DVI digital monitor support
• Built-in 8KV/15KV ESD protection and 2KV surge protection
• Supports stereo speakers and stereo microphone
• Auto-MDIX - automatically detects cable type
• Supports widescreen formats
• Supports high-quality video streaming
• Virtual media support
• Hot pluggable
• Rack Mountable
• Upgradeable firmware
1x KE6900ST DVI KVM Over IP Transmitter
1x USB DVI-D KVM Cable
4x Foot Pads
1x Power Adapter
1x Mounting Kit
1x User Instructions
