UH7230

Model No. UH7230 In stock

UH7230
Buy this item and earn 285 ClubPoints.

Thunderbolt™ 3 multiport dock with power charging

dual 4K or 5K resolution for graphics-intensive multitasking

UH7230

• Supports both Thunderbolt 3 (40Gbps) and USB 3.1 Gen1 (10Gbps) protocols through a single Thunderbolt 3 cable
• Connect up to 8 devices to a laptop via a single Thunderbolt 3 cable / can daisy-chain 5 additional Thunderbolt devices
• 85W Universal Power Delivery for charging a Thunderbolt 3 laptop or Macbook pro
• Supports 20V/4.25A, 15V/3A, 9V/3A and 5V/3A power specifiation for the output power
• Supports 5K resolution on a single Thunderbolt 3 display or dual 4K resolution on one DisplayPort display and one USB-C / Thunderbolt 3 display

UH7230Combining a truly immersive next-generation visual experience with amazing throughput speeds, UH7230 multiport dock allows you to connect two 4K displays (one DisplayPort and one Thunderbolt™ 3 USB-C port) or one latest generation 5K display, with nearly 16 million more pixels than an HDTV. Enjoy the astonishing resolution, contrast and color depth, whether you are editing videos or digital media, designing graphics or using any application that requires high-definition visuals.

The ATEN Thunderbolt™ 3 multiport dock is designed for creating a simplified and productive state-of-the-art workspace. With included Thunderbolt™ cable, it delivers more connectivity to your MacBook Pro or Windows laptop and more charging capability than ever before. Harness the full potential of Thunderbolt™ 3 and embrace the next generation of workstation connectivity. It is ideal for creative professionals and those who work with high-resolution, and graphic-intensive images, video, and CAD drawings, such as video producers, graphicand web designers, architects, and more.

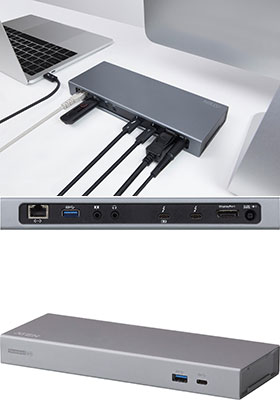

UH7230 Thunderbolt 3 multiport dock connects a laptop to Ethernet, DisplayPort, USB-C 3.1 Gen 1, speaker and microphone ports through a single cable. The all-in-one dock provides a total of 8 ports and is designed to instantly connect and disconnect from your Thunderbolt 3 laptop.

UH7230 supports a single Thunderbolt monitor with resolution up to 5K (5120x2880 @ 60Hz), and dual 4K (4096x2160 @ 60Hz) multi-display setups on a DisplayPort and a Thunderbolt or a USB-C displays. Gigabit Ethernet port delivers Internet speeds up to one Gigabit (1000 Mbps).

This multiport dock also supports USB Power Delivery 2.0, which means UH7230 can provide power to matched USB-C Windows or Mac laptops with PD Profile specifications of 20V/4.25A, 15V/3A, 9V/3A and 5V/3A.

UH7230Blazing Fast Speed to Boost Productivity
With Thunderbolt™ 3's phenomenal bandwidth, up to 40Gbps, transferring a 4K movie needs less than 30 seconds. This means you can transfer files faster, reduce waiting and accomplish more in the same amount of time.

Up to 85W Power Delivery for Mac or Windows Laptop
UH7230 is an intuitive central hub for not only connectivity expansion but also for charging your laptop and USB accessories. It supports up to 85W of power delivery for Mac or Windows laptops.

Single Cable for Astounding Expandability
Using the single Thunderbolt™ 3 cable (included), the docking station expands the connectivity up to 8 ports, including audio, Gigabit Ethernet, DisplayPort, Thunderbolt™ 3 USB-C and USB 3.1 Gen 1 ports to accommodate your most demanding computing needs. A Thunderbolt™ 3 port is also provided to daisy chain up to 5 additional Thunderbolt™ 3 devices, such as data storage.

Features and Benefits
• Supports both Thunderbolt 3 (40Gbps) and USB 3.1 Gen1 (10Gbps) protocol through a single Thunderbolt 3 cable
• Connect up to 8 devices to a laptop via a single Thunderbolt 3 cable / can daisy-chain 5 additional Thunderbolt devices
• Supports 5K resolution on a single Thunderbolt 3 display or dual 4K resolution on one DisplayPort display and one USB-C / Thunderbolt 3 display
UH7230• 85W Universal Power Delivery for charging a Thunderbolt 3 laptop or Macbook pro ; supports 20V/4.25A, 15V/3A, 9V/3A and 5V/3A power specifi cation for the output power
• Compatible with legacy Thunderbolt devices via adapter
• Gigabit Ethernet port
• Audio line-in and line-out
• OS Support: Windows 10 32/64 bit, and OS X Sierra 10.12 later

Package Contents
1x UH7230 Thunderbolt™ 3 Multiport Dock
1x Thunderbolt 3 USB-C Cable
1x AC Power Adapter with Cable
1x User Instructions
