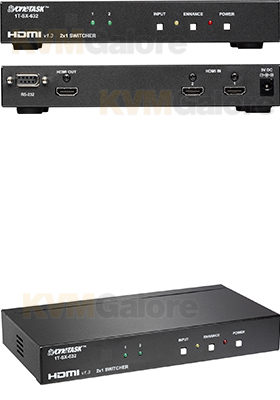

2-port HDMI (version 1.3 compliant) routing switcher
1T-SX-632 2x1 HDMI Routing Switcher switches between two inputs, maintaining the signal components present within the encoded signal, allowing the user to easily select program material without plugging and unplugging cables. Embedded audio, including Dolby® Digital TrueHD and DTS-HD is supported.
HDTV resolutions of 480p, 576p, 720p, 1080i and 1080p are supported, plus SDTV resolutions of 480i and 576i and PC resolutions up to 1920x1200.
1T-SX-632 2x1 HDMI Routing Switcher is fully DVI compatible.
1T-SX-632 2x1 HDMI Routing Switcher can be controlled via the front panel or with the included infrared remote control. RS-232 control is provided as a standard feature.
Provisions are made for securing locking type HDMI cables.
1T-SX-632 2x1 HDMI Routing Switcher is housed in rugged metal case and optional single/dual rack-mount kits are available.
1T-SX-632 2x1 HDMI Routing Switcher is 5VDC powered and a power adapter is included. The DC power connector is a locking type for security.
For best performance at long distances, premium grade cables are recommended.
Features and Benefits
• Switches two HDMI sources
• Supports HDTV resolutions up to 1080p
• Supports SDTV 480i, 576i resolutions
• Supports PC resolutions up to 1920x1200
• HDMI v1.3, HDCP v1.1, DVI v1.0 Compliant
• Built in Enhancer for long cable runs
• Supports 10/12 bit Color Depth Displays
• Supports DDWG Standard for HDMI Monitors
• Supports embedded audio, including Dolby® Digital, TrueHD and DTS-HD
• Controllable via front panel or included IR remote
• RS-232 control port provided
• Single/Dual rack-mount kit optional
• Locking DC power connector for security
• Limited Warranty: 3 Years Parts and Labor
1x Power Adapter (US, UK or Euro)
• Operations Manual
• IR Remote Control Unit
• Locking Cable Kit: Hex adapters to accommodate locking HDMI connectors
• Rackmount Kit: RM-230 Single/Dual
