HDMI Extension over HDBaseT-Lite
HDMI v1.4 and IR extenders using HDBaseT-Lite technology for a 197 foot extension over a single CAT-5e/6 cable, supporting 3D, 1080p and 4K
Read more below...
HDMI v1.4 and infrared (IR) extenders
using HDBaseT-Lite technology for 197 foot (60m) extension over a single CAT-5e/6 cable

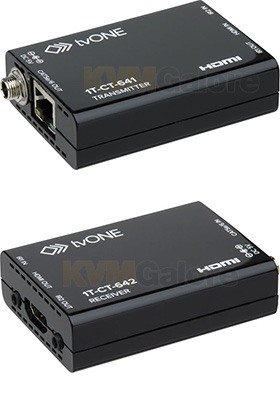

HDBaseT-Lite HDMI over a single CAT-5e/6 extension system consists of a 1T-CT-641 Transmitter coupled with a 1T-CT-642 Receiver (each purchased separately) which employs HDMI v1.4 capability and the HDBaseT-Lite technology to allow transmission of uncompressed, 1080p high definition television signals over a single CAT-5e/6 cable. This is the type cable typically employed for Ethernet computer networks.
HDMI v1.4 signals, including 3D and 4k UHD formats, are supported and the system will also allow DVI signal transmission with appropriate DVI to HDMI Cable adapters. In addition, embedded LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio capability is standard.
HDBaseT-Lite HDMI over a single CAT-5e/6 extension system can achieve signal distribution distances of up to 197 feet (60m) for uncompressed HDMI signals without signal degradation.
A screw on power adapter cable prevents inadvertent disconnection of power.
