HDMI Extension over HDBaseT
tvONE

HDMI Extension over HDBaseT

HDMI v1.4a extension over CAT-5e/6 with control over IR or RS-232, optional PoH and Ethernet control, using HDBaseT 3Play™ technology
Read more below...

1) 1T-CT-653 Model No. 1T-CT-653 In stock

FREE GROUND SHIPPING!


$276.00 Compare to MSRP $325.00 - You save $49.00

2) 1T-CT-654A Model No. 1T-CT-654A In stock

FREE GROUND SHIPPING!


$276.00 Compare to MSRP $325.00 - You save $49.00

HDMI v1.4a extension over a single CAT-5e/6

with control over infrared or RS-232, optional PoH and Ethernet control, using HDBaseT 3Play™ technology


HDMI Extension system over HDBaseT using a single CAT-5e/6 consists of Transmitters coupled with Receivers (each purchased separately) which employ HDMI v1.4 capability and HDBaseT 5Play™ technology to allow transmission of uncompressed, 1080p high definition television signals over a single CAT-5e/6 cable.

HDMI v1.4a signals, including 3D and 4K x 2K formats, are supported and the system will also allow DVI signal transmission with appropriate DVI to HDMI Cable adapters. In addition, embedded LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio capability is standard.

Control signals can be passed via infrared or RS-232, optionally also via Ethernet.

HDMI Extension over HDBaseT system can achieve signal distribution distances of up to 325 feet (100m) for uncompressed 1080p signals without signal degradation.

Optional power over HDBaseT (PoH) support allows the Receiver to be powered by a PoH Transmitter (1T-CT-653, MX-8488) if a local power connection is not available.

Bi-Directional infrared control is provided via sensors that can be remotely placed several feet from the units themselves. Bi-directional RS-232 signals are also supported. HDCP security is enabled at the version 1.1 level and both the Transmitter and Receiver units feature the unique TV One-task locking power connectors to enhance overall system mechanical security.



Transmitters
Model Number Product Image Format Audio Max Distance Compatible Receivers* Features
1T-CT-651 1T-CT-651 HDMI v1.4a
Uncompressed
4K UHD Support
Embedded
All formats
supported
100m at 1080p 1T-CT-652, 1T-CT-654A, 1T-CT-642 HDBaseT DVI-D Compatible,
RS-232/IR
3D Compatible

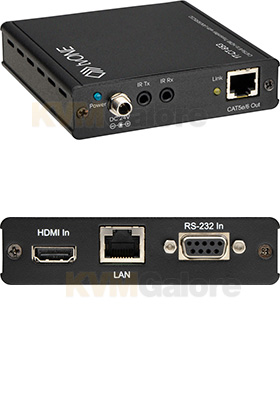

1T-CT-653 1T-CT-653 HDMI v1.4a
Uncompressed
4K UHD Support
Embedded
All formats
supported
100m at 1080p 1T-CT-652, 1T-CT-654A, 1T-CT-642 HDBaseT 5Play™,
DVI-D compatible,
RS-232/IR, 3D Compatible, Ethernet, PoH
Receivers
Model Number Product Image Format Audio Max Distance Compatible Transmitters* Features
1T-CT-652 1T-CT-652 HDMI v1.4a
Uncompressed
4K UHD Support
Embedded
All formats
supported
100m at 1080p 1T-CT-651, 1T-CT-653,
CM-HDBT-SC-2OUT-1ETH,
1T-CT-641, 1T-CT-647
HDBaseT , DVI-D compatible
RS-232/IR
3D Compatible
1T-CT-654A 1T-CT-654A HDMI v1.4a
Uncompressed
4K UHD Support
Embedded
All formats
supported
100m at 1080p 1T-CT-651, 1T-CT-653,
CM-HDBT-SC-2OUT-1ETH,
1T-CT-641, 1T-CT-647
HDBaseT 5Play™,
RS-232/IR,
DVI-D compatible
3D Compatible,
Ethernet, PoH


* Note: Max distance and features are determined by the lower spec Tx/Rx in mixed systems.
