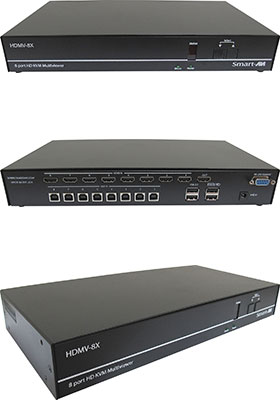

HDMV-8X

Model No. SM-HDMV-8XS In stock

HDMV-8X
Buy this item and earn 2,449 ClubPoints.

SM-HDMV-8XS: View eight (8) HDMI computers simultaneously on one display

while accessing and controlling them from a single KVM console


HDMV-8X 8-port KVM HD multiviewer is a member of SmartAVI's HD Multiviewer series of products. It allows users to view up to eight different HD digital video sources on one display device simultaneously. HDMV-8X also supports USB KVM functionality, allowing the user to access keyboard, video and mouse operations on up to eight connected computers.

Connections to video sources are managed via HDMI connectors (or DVI-D connectors with adapter), with advanced viewing options such as dual-mode, quadmode, full-screen mode, and more (see below).

Use this device to simplify the management of multiple video sources by accessing and controlling them from a single set of controls on one display. With user-friendly KVM functionality built in, there's no better solution for complete control over eight computers and/or video sources.

HDMV-8X Multiviewer can be used in many applications that require real-time monitoring of multiple devices, like HDTV, DVD players, cameras and computers. It is the perfect solution in situations where a user needs to monitor several sources at the same time.

In Air Traffic Control environments, several computers are required to monitor the progress of flights and flight information. With HDMV-8X the user is able to manage each computer and monitor the progress without having to switch between sources, making it the perfect solution for multitasking.

Simple operation and optional Ethernet control
Controlling the HDMV-8X is easy using front panel buttons, hot keys, RS-232 or on-screen-display (OSD). Optional Ethernet control is also available, giving users the ability to control HDMV-8X from virtually anywhere with the optional Ethernet control. If users need to make changes remotely, or if users need to place HDMV-8X away from the primary workstation, SmartAVI Net-IP-Pro control module enables effective for real-time remote control management over an Ethernet connection. Simply connect the Net-IP-Pro module to the device while connected to the Internet, and the device can be controlled remotely with ease.

Available Configurations
HDMV-8X• Full Screen with PIP: In Full Screen with PIP mode, the full screen displays one of the eight video sources, and is accompanied by seven smaller images (thumbnails) evenly displayed along the bottom and the right-hand margin of the screen from left to right, from bottom to top, allowing simultaneous monitoring. Mode changing or selecting video sources is done via buttons on the front panel.



HDMV-8X

• Full Screen with bottom PIP: In Full Screen with Bottom PIP mode, the full screen displays one of the eight video sources, and is accompanied by seven smaller images (thumbnails) evenly displayed along the bottom of the screen from left to right, allowing simultaneous monitoring. Mode changing or selecting video sources is done via buttons on the front panel.



HDMV-8X• 2x4: In 2x4 mode, all eight video sources are displayed on the screen similar to 8S1 mode except that they have original aspect ratio. Mode changing or selecting video sources is done via buttons on the front panel.




HDMV-8X• 8x: In 8x mode, all eight video sources are displayed on the screen evenly from left to right, from top to bottom of the screen, each takes one ninth the size of the screen, allowing user to simultaneously monitor the sources. Mode changing or selecting video sources is done via buttons on the front panel.



HDMV-8X• 2x2 with PIP: In 2x2 with PIP mode, the full screen displays four of the eight video sources evenly from left to right, from top to bottom with the first two are on top and the second two are on the bottom of the screen. The other four video sources are smaller images (thumbnails) evenly displayed along the right-hand margin of the screen from bottom to top, allowing simultaneous monitoring. Mode changing is done via buttons on the front panel.

HDMV-8XDual Scren: In Dual Screen 1-2 mode, the full screen displays the first and the second video sources side by side with their original aspect ratios, allowing simultaneous monitoring. In Dual Screen 3-4 mode, the full screen displays the third and the fourth video sources side by side. Dual Screen 5-6 mode and Dual Screen 7-8 mode operate in a similar way on 5th and 6th; 7th and 8th video sources respectively. Mode changing is done via buttons on the front panel.

HDMV-8X• Quad Scren: In Quad Screen 1-4 mode, the full screen displays the first four video sources evenly from left to right, from top to bottom (the first two are on top, the third and fourth are on the bottom of the screen), allowing simultaneous monitoring. In Quad Screen 5-8 mode, the full screen displays the fifth to the eighth video sources evenly from left to right, from top to bottom (the fifth and sixth are on top, the seventh and eighth are on the bottom of the screen), allowing simultaneous monitoring. Mode changing is done via buttons on the front panel.

Features and Benefits
• View up to eight sources on a single monitor at the press of a button
• Supports USB keyboard and mouse
• Display each computer with clean and crisp high-resolution video
• Supports DVI-D input resolutions up to 1920x1200
• Supports up to 4k HDMI output (3840x2160)
• Control any one computer or device while monitoring seven others
• Delivers uncompressed digital video with zero signal loss
• HDCP and HDMI 1.4 compliant
• Supports EDID for total control of compliant displays
• Outputs HDMI up to 20 feet
• Change views by pressing the tactile switches, entering keyboard hotkeys, or commands sent through RS-232
• Quad-mode splits the screen to show four sources on one screen
• Dual-mode splits the screen to show two sources on one screen

Package Includes
• HDMV-8X KVM switch
• Power cord [CCPWR06]
• Cables not included

Required Cables (per port)
1x HDMI, male-male
1x USB, Type-A to Type-B
