DT1000 - Model No. DT1000 - KVMGalore® | Tech Solutions Made Easy™
  • Compare to MSRP --
  • You save--
  • Our Price $599.99
For additional views click on an image below
Image 1 of 3 view
Image 2 of 3 - RF6, back view, shown with two (2) single-bay modules installed. view

Image 3 of 3 - RF6, back view, shown with four (4) single-bay modules installed. view


Model No. DT1000 In stock

Buy this item and earn 600 ClubPoints.

PureLink HDTools

DVI + analog audio over 4 LC fiber-optic transmitter module

for RF6 Extension Center, 5,000 feet - Full HD

Looking for a better price? Write to us or call us at 1-800-636-3434 and ask for our special offer

Note: Receiver units are purchased separately

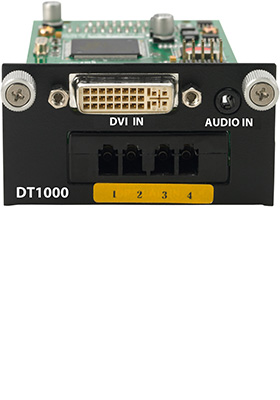

DT1000 is a slot-loading (into a RF6 chassis) module board transmitter. It provides a very easy and reliable solution for extending uncompressed HD video and audio signals up to 5,000 feet (1,530 m) via 4 strand fiber optic cables.

RF6 Extension Center is a revolutionary 19", 1-RU size rack mount assembly for DVI/HDMI fiber-optic/CAT-5 extension modules. Various transmitter and receiver modules are designed for slot-loading into the RF6 main frame.

Able to mix fiber optic and CAT-5 extensions, RF6 Extension Center features power supply for up to six modules per chassis, eliminating a lot of small adapter type power supplies, housed in a 1RU rack housing.

Compact and durable design along with lower power consumption makes it an ideal solution for connection of high definition video/audio signal of digital displays such as LCD/Plasma/LED displays and projectors.

This pure fiber optic/CAT-5 connection enables electrical noise free and EMI free that is ideal for long distance/mid-range extension of high definition DVI/HDMI signals with audio.

Intuitive LCD panel on RF6 Extension Center shows the status of the video and audio signals including the current signal image format and audio format. This information provides helpful diagnostic information.

RF6 Extension Center accommodates up to 6 single-slots or 3 double-slots. It is space saving design with rack mountable enclosure.

Compatible with:
• DR1000
• OLC Rx

Features and Benefits
• DVI input
• Analog 3.5mm stereo audio
• 4 LC fiber ouput
• Plug-N-Play
• HDCP compliant
• 1080p ready
• Auto EDID
• DDWG DVI/HDMI standard


Listed below are additional products to consider which are compatible with DT1000. These items may be required to complete your system.


1) RF6

    Model No. RF6




2) DR1000

    Model No. DR1000
