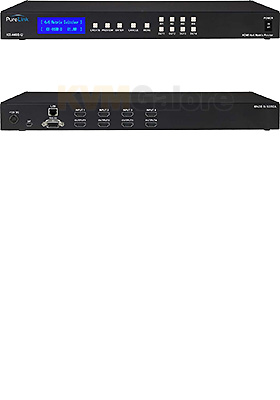

4x4 (four in, four out) 4K HDMI matrix audio-video switcher/router
HX-4400-U HDMI integrated matrix router provides switching options for 4 HDMI inputs and 4 HDMI outputs, and feature PureLink's legendary EDID/HDCP management system, consistently praised by system integrators as the most reliable in the industry.
PureLink's HX-4400-U 4x4 HDMI matrix router enables you to switch 4 HDMI sources from host HDMI sources to 4 HDMI digital displays.
PureLink HX-4400-U HDMI audio-video matrix switch is built to be the most reliable devices of its kind, and offers a unique and affordable solution for semi-pro installations where digital switching is a must.
PureLink HX-4400-U HDMI audio-video matrix switch supports 4K/Ultra-HD and 1080p, as well as computer resolution up to 1920x1200 at 60Hz.
PureLink HX-4400-U HDMI audio-video matrix switch features a built-in RS-232C port for external control via PC or controller. A built-in LAN port offers networking capability, while two line LCD display offers intuitive and rapid switching.
PureLink HX-4400-U HDMI audio-video matrix switch also features flexible EDID management and is Vista Spyder™ and Barco Encore™ compatible.
Together with full HDCP, HDMI v1.4 compatibility, and PureLink's uncompromising design and manufacturing standards, HX series delivers unparalleled quality and value. A robust and heavy duty casing is designed for 19" rack-mounting.
Features and Benefits
• Matrix switching with 4 HDMI inputs and 4 HDMI outputs
• HDTV resolution up to Ultra HD (4Kx2K) and 1080p @ 60Hz
• Computer resolution up to 1920x1200 @ 60hz
• Pixel re-clocking and error correction for optimal picture quality
• Built-in RS-232C and LAN for external control via PC or Controller
• RS232, LAN and front panel control
• EDID management (emulation)
• Controllable via any external controller
• Vista Spyder and Barco Encore compatible
• IP networking capable
• Two line LCD display for intuitive and rapid switching
• HDCP Compliant
• HDMI v1.4
• Full 3D and 48-bit Deep Color support
• 7.1 channel Dolby TrueHD and DTS MasterHD support
• 19" rack mountable - robust & heavy duty casing
In the Box
• HX-4400-U switcher
• Power adapter
• RS-232C and LAN cables
• Rack ears
• Owner's manual
