GCS1108KIT1: 8-port, dual-monitor-console (DVI and VGA) KVMA/KVMP switch - DVI-USB cables included
supporting USB 2.0 peripheral sharing, stereo audio and both analog and digital video
IOGEAR 8-port USB DVI KVMP Switch is a control unit that allows access and control of up to 8 computers from a single USB keyboard, USB mouse, and dual-monitor (DVI-I and VGA) console. It can be cascaded to three levels – allowing up to 73 GCS1108s to control up to 512 computers – all from the original single console.
In addition, GCS1108 comes with IOGEAR's Video DynaSync™ technology to optimize the display resolution. IOGEAR's DynaSync* technology reads and remembers the monitor's parameters (EDID) so there is no delay or change of video resolution when switching between, or booting computers.
Switching between computers can be easily accomplished either by manually pressing the front panel push buttons, entering hotkey combinations from the keyboard, or via on-screen display (OSD) system.
A convenient auto-scan feature permits automatic scanning and monitoring of activities on all connected.
GCS1108 provides 2.1 stereo audio and microphone support, as well as multimedia keyboard support.
Features and Benefits
• One USB console controls eight DVI or VGA computers
• Supports both digital (DVI), analog (DVI) video and analog (VGA)
• Superior video quality: 1920x1200 (Single Link DVI), 2048x1536 (VGA); DDC2
• Supports widescreen resolutions
• Multi-platform support – Windows, Linux, Mac, Sun
• Computer selection via front panel pushbuttons, hotkeys, and on-screen display (OSD)
• Includes two USB 2.0 peripheral sharing ports
• Independent switching of KVM and USB focus
• Two-level (Administrator / User) password authorization for enhanced security protection
• Cascadable to three levels – control up to 512 computers
• IOGEAR's DynaSync* technology reads and remembers the monitor's parameters (EDID) so there is no delay or change of video resolution when switching between, or booting computers
• Audio enabled – Full bass response provides a rich experience for 2.1 channel surround sound systems
• Complete keyboard emulation for error-free booting
• Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice
• Mac / Sun keyboard support and emulation**
• Auto Scan Mode for monitoring all computers
• Broadcast mode – allows you to send commands from the console to all computers to perform operations simultaneously
• Firmware upgradable
• HDCP compatible
• Console audio ports on front panel for easy access
• 3-year warranty

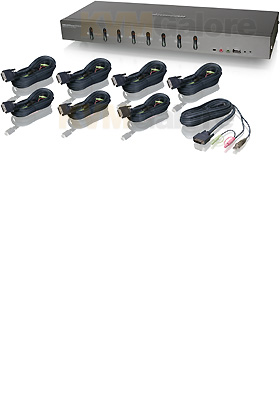

1x GCS1108 8-port USB DVI KVMP Switch
4x 6ft Single Link DVI-D USB KVM Cable
4x 10ft Single Link DVI-D USB KVM Cable
1x Firmware Upgrade Cable
1x Power Adapter
1x Foot Pad Set (4 pcs)
1x User Manual
1x Rack Mounting Kit
* IOGEAR's DynaSync provides the EDID support for Windows 7.
** PC keyboard combinations emulate Mac / Sun keyboards; Does not emulate Mac / Sun keyboard to PC keyboard.
