8-port, 2-output 3G HD-SDI switcher
• Max. Data Rate - 3Gbps
• Control - RS-232, RS-485, Ethernet, contact closure & IR Remote
• Size - 19" (1U)
• Audio - E

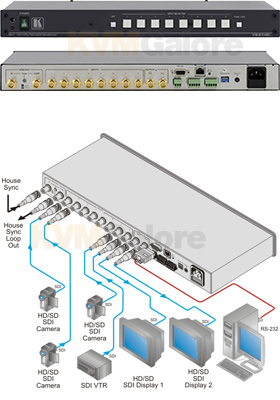

VS-81HDxl is a high-performance switcher for 3G HD-SDI video signals. The unit switches any one of the eight inputs to two identical outputs.
Features and Benefits
• Max. Data Rate - 3Gbps.
• HDTV Compatible.
• Multi-Standard Operation - SDI (SMPTE 259M/344M), HD-SDI (SMPTE 292M) & 3G HD-SDI (SMPTE 424M).
• Kramer Equalization & re-Klocking™ Technology - Rebuilds the digital signal to travel longer distances.
• Active Input Type™ Reporting - The unit lights the selected input LED in green for SD-SDI and in blue when the signal is HD-SDI.
• Analog Sync Type - Bi-level and tri-level sync.
• OFF Button - Disconnects all inputs at once.
• Flexible Control Options - Front panel, RS-232 (K-Router™ Windows®-based software is included), RS-485, Ethernet, contact closure & IR remote (included).
• Vertical Interval Switching - SMPTE RP-168.
• Front Panel Control Lockout.
• Worldwide Power Supply - 100-240V AC.
• Standard 19" Rack Mount Size - 1U. Rack "ears" included.
