BrightSign XT1143 - Model No. XT1143 - KVMGalore® | Tech Solutions Made Easy™
  • Compare to MSRP $650.00
  • You save$1.00
  • Our Price $649.00
For additional views click on an image below

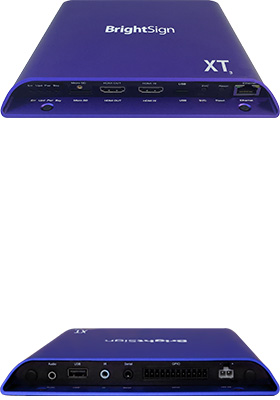

Image 1 of 2 view
Image 2 of 2 view

BrightSign XT1143

Model No. XT1143 In stock

BrightSign XT1143
Buy this item and earn 649 ClubPoints.

H.265, True 4K, dual-video decode, enterprise HTML5 digital-signage media player

supporting HDR, with expanded I/O package, live TV playback and PoE+

• Power over Ethernet (PoE+)
• Most powerful dual video decoding of one 4K and one 1080p video
• Supports H.265 encoded 4K HDR and Full HD video
• CEA HDR10 media profile: 10 bit color depth and 4:2:0 sub-sampling
• Most powerful HTML5 engine for enterprise applications
• Gigabit Ethernet networking
• Engaging interactive controls including GPIO, IR, M.2 SSD
• Analog and digital audio output
• M.2 interface to support an optional wireless/Bluetooth module
• Dual USB (type A and type C)
• Serial control for engaging interactive options
• HDMI 2.0 input to play content from any broadcast channel, even protected HDCP content

BrightSign XT1143 delivers unsurpassed performance for enterprise applications with a powerful 4K video engine, BrightSign's fastest HTML and graphics engine and BrightSign's most powerful CPU.

This state-of-the-art technology for leading-edge digital signage installations supports H.265 decoding, True 4K HDR and Full HD video playback including Mosaic Mode.

BrightSign XT1143 offers a hardware-accelerated HTML5 rendering engine that play highly complex and memory intensive HTML5 content such as swipe/pinch/zoom gesture interactivity, streaming social media and multiple modular HTML5 assets including Javascript, CSS animations, WebGL, layered with live TV and video.

XT1143 offers the most powerful H.265 4K and Full HD video engine with 4K upscaling and dual decoding of one 4K and one Full HD video simultaneously.

XT1143 delivers the best HTML5 rendering performance available for enterprise applications.

XT1143 includes the expanded I/O package of Gigabit Ethernet with PoE+, GPIO, dual -USB, serial, IR, UDP, analog/digital audio and an M.2 SSD interface, as well as HDMI-in for live TV playback from any broadcast channel, even protected HDCP content.

BrightSign 4K up-scaling

• Get more efficient, stellar quality playback using H.265
• Play both 4K and Full HD content encoded with H.265
• Get half the file size and double the bandwidth and memory savings
• Achieve better video quality with H.265 vs. H.264 at the same bit rate
• Only H.265 supports 10-bit color and high dynamic range of color

Powerful Video Engine
• Native 4K CEA HDR10, H.265 decoding via HDMI 2.0a at 60fps
• High Dynamic Range (HDR) for vibrant colors in highlights and detail in shadows
• Dual video decoding: one 4K (3840x2160p60) video and one Full HD (1080p60) video simultaneously
• Superior scaling technology delivering pristine video quality for any screen or zone size including upscaling of Full HD video to 4K
• Simultaneous playback of content from local, streaming and live content sources
• Accelerated JPEG decompression for instant image display and high-speed transitions

Native 4K Playback
• Optimal playback of native 4K content on a 4K/UHD display
• True 4K: 3840x2160 resolution @ 60p frame rate
• H.265 HEVC (high efficiency video coding): Enables delivery of high-quality 4K content at about the same file size and data rate as HD content at H.264
• HDMI 2.0: Only the new HDMI 2.0 standard can support 60p playback at 4K

Full HD
• Exceptionally smooth 1080p playback
• 1920x1080 Full HD video at 60 frames per second, providing a flawlessly smooth and crisp viewing experience
• Supports for dual video decoding of two Full HD 1920x1080p60 videos simultaneously
• Supports Full HD content encoded with H.265, H.264, MPEG-1, MPEG-2 and WMV
• Offers highly reliable and flawless playback

4K Up-Scaling
• Use the exceptionally powerful video engine to upscale 1080p content to sharp 4K resolution
• Display manufacturers can demonstrate the same 1080p content on a Full HD display and a 4K display side-by-side to clearly showcase the superior picture quality of the new 4K screens
• BrightSign upscaling offers far better quality than the upscaling built in to screens

Live TV
• Link to any live data and media feed available to display in your signage
• MRSS feeds: Keep your signage up to date by linking to and displaying popular news, finance, weather, and sports feeds.
• 3rd party schedule feeds: Connect to virtually any database to display up to the minute details. Perfect for flight timetables, event schedules, corporate statistics, etc.
• Twitter and Flickr feeds: Link to social media feeds such as twitter and Flickr to keep your signage relevant and fresh.

• Hardware-accelerated Chromium HTML5 rendering engine brings powerful content development tools to your fingertips
• Play industry standard HTML5 content including JavaScript, CCS animations, transitions, WebGL and more
• Play highly complex and memory intensive HTML5 content such as swipe/pinch/zoom interactive, streaming social media and multiple modular HTML5 assets layered with live TV and video

Mosaic Mode
• Play a multitude of smaller resolution videos simultaneously that add up to the maximum video resolution of the player

IP Streaming
• Supports Full HD video, Mjpeg and audio IP streaming, including: HLS (the standard for public internet streaming: i.e. YouTube, etc.); UDP/RTP/RTSP streaming from head-end real-time encoders; HTTP, including SHOUTcast
• Customize buffering and latency to improve media streaming performance
• Play streaming media in HTML5 assets or in BrightAuthor video, audio or MJPEG stream states
• Stream, buffer and play content from IP cameras supporting the RTSP unicast streaming protocol
• Supports streaming motion JPEGs within image zones and video streams within video zones
• Play multiple video streams simultaneously

BrightAuthorIP Streaming Server
• Securely distribute video to a set of devices without downloading the content to display
• Serve IP video streams from the BrightSign player's local storage to distribute video to a network of clients
• Supports MPEG transport stream (*.ts) video files
• Clients can be networked BrightSign XD or HD players, PCs, Macs, mobile devices, etc.
• Supports RTP unicast, UDP multicast, and HLS
• Stream multiple video files simultaneously

• Enabling highly targeted audience engagement with Bi-directional communication between BrightSign Digital signage and mobile devices
• BrightBeacon improves the overall digital signage experience by increasing audience engagement and creating a highly targeted, personal experience on two screens. Using Bluetooth and beacon technologies, 2-way communication between BrightSign digital signage and mobile devices is achieved and allows for the delivery of highly targeted promotions based on location as well the ability to control digital signage playback from a mobile device
• Integrated beacon and BTLE technology available on BrightSign players with no batteries required
• Delivers 2-screen exposure on both large digital signage screen and mobile device display
• Senses nearby BTLE enabled mobile devices and sends highly targeted content based on location-awareness
• Supports 2-way communication between mobile devices and digital signage
• Offers a fully programmable solution with multiple beacon UUIDs supported, and easy repurposing of beacon and app associations using BrightAuthor and the BrightSign Network
• Works with the BrightBeacon sample app and can be integrated with 3rd party apps
• Compatible with BrightSign players running version 6.2+ firmware and requires a BrightSign provided plugin and Bluetooth 4.0 USB dongle

BrightSign PoE+Power over Ethernet
• Power your digital signage with PoE+
• Use PoE+ (Type 2) to power your XD and 4K players with just an Ethernet connection
• Eliminates the power cord with support for up to 25 watts of power
• XT players will not exceed 25 watts when running a standard presentation
• When XT players are powered by PoE+, there is approximately 1A available for all other connectors

Digital Audio
• Play back high-quality digital S/PDIF audio
• Easily add audio playlists to your presentations
• Synchronize audio with video playback
• Create and play interactive retail audio product demonstrations

SSD M.2 Interface
• Low-profile M.2 SSD interface connector for added internal storage
• Supports small form factor solid-state drives with faster transfer rates
• Offers additional content storage in place of microSD cards

• Create an impressive and vibrant impression across multiple displays
• A powerful drag-and-drop BrightAuthor tool that makes building video walls simple in any size and layout
• Supports separate videos per display or stretches a single video across all the displays
• Build video walls by simply choosing the number of displays, specifying the layout of the displays, and dragging the video(s) into BrightAuthor
• Utilizes the BrightSign Ethernet port and a common clock to achieve frame-accurate synchronization

Sign preview

• Multiply your content delivery with multi-zone layouts
• Playback multiple content files on a single screen with zones – even dual videos
• Abundant content support including Full HD video, images, HTML5, Live TV, audio, text tickers, Live Text, RSS feeds, date/time widgets and more!
• Control each zone using its own playlist
• Play video and audio independently
• Synchronize zones together and link to lighting and other displays to create an immersive experience

• Engage your audience with interactive devices and controls
• Trigger playback from virtually any type of interactive device you can dream up using Interactive Playlists in BrightAuthor or HTML5
• Connect virtually any type of interactive device to a multitude of interactive ports (GPIO, dual USB, serial, IR, UDP)
• Grab attention, demo product operations, deliver coupons and pricing on demand
• Control the show with UDP or serial controls to power and manage media playback, control AV devices such as projectors, lighting, audio systems and integrate with other show controllers (AMX, Crestron, Alcorn, etc.)

Live Feeds
• Link to any live data and media feed available to display in your signage
• MRSS feeds: Keep your signage up to date by linking to and displaying popular news, finance, weather, and sports feeds
• 3rd party schedule feeds: Connect to virtually any database to display up to the minute details. Perfect for flight timetables, event schedules, corporate statistics, etc.
• Twitter and Flickr feeds: Link to social media feeds such as twitter and Flickr to keep your signage relevant and fresh

• BrightSign Network users can assign media and player tags for highly targeted content distribution

UDP Control
• Remotely control and interact with your digital signs via Ethernet or WiFi
• Users can interact with signage via mobile devices to download coupons or learn more about products
• Deliver emergency messaging by controlling digital signage remotely
• Integrate with databases to view inventory, statistics, pricing or any array of information
• Show controlling is made easy with UDP and serial controls: power and manage media playback, control AV devices such as projectors, lighting, etc. and integrate with other show controllers
• UDP controls can be sent via Ethernet or wireless

• Mobile digital signage that plays content based on your current location
• Play specific audio and/or video content when located within a defined geographical radius (requires a USB GPS device)
• Advertise and promote local businesses: shuttles, taxis, public transportation and moving billboards
• Inform and educate riders with video and audio relevant to the area: Tour buses and boats

BrightSign App
• Easily update messaging and interact with locally networked signage using your iPad or iPhone with a simple and secure interface
• Perfect for: menu board updates; retail merchandising; emergency messaging
• Select any BrightSign player connected to a local network
• Update on-screen text and user variables immediately within the running presentation
• Trigger presentation events and change presentation content via UDP commands
• Customize the user interface to match your presentation
• Access the diagnostic tools for each unit
• Secure your displays with a password

Sign Preview
• Get a sneak peek at how your signage will display
• Preview presentation playback in BrightAuthor before publishing
• Speed up presentation authoring by reviewing the final look of your digital signage

Remote Snapshot
• Get a glimpse of what your signage playback looks like
• See a snapshot image of all zones in your currently running presentation
• View snapshots over the local network via the BrightSign App or BrightAuthor
• View snapshots on the BrightSign Network via BrightAuthor or the WebUI

• Create signs using professional templates and distribute content through the cloud
• Online, template-based sign creation service accessible from any PC or Mac
• Ready to use templates in landscape or portrait orientation for a variety of verticals: menus, education, retail and corporate
• Easily customizable to match your brand
• Deliver finished presentations and content updates to any networked BrightSign player on your BrightPlates account
• Connect with content designers to create, upload and deploy original HTML templates
• Can be linked to a BrightSign Network account to access content and publish to network groups

BrightSign networkingGigabit Networking
BrightSign offers a wide range of networking solutions to update content and easily manage your digital signs remotely
• Local Network Publishing: Free solution designed for small networks. Distribute presentations and updates to BrightSign units within a single building using a LAN
• Simple File Networking: Free solution designed for small networks. Distribute presentations to BrightSign units through a web folder
• BrightPlates: Use this browser-based application to create signs using professional templates. Includes a cloud-publishing service for turnkey deployment of signage presentations
• BrightSign Network: Secure, scalable and affordable cloud-based digital signage network service:

  • Delivers the complete infrastructure to serve, manage and support your digital signage network
  • Scalable to any size network, allowing you to manage an unlimited number of BrightSign players on a single account
  • Frees you from the complexities of hosting and maintaining your own network
  • PCI-compliant service, offering a complete set of tools to easily manage your network
  • Access the networking using the free PC-based BrightAuthor software or browser-based WebUI (accessible from any PC or Mac)
  • Includes BrightPlates™

• BrightSign Network Enterprise Edition: Installable software version of the BrightSign Network. Allows you to host a network instance on your own servers, with access to all BrightSign Network features.

Learn more about BrightSign range of networking solutions

• Output CEA HDR10 color to the display over HDMI 2.0a (a free firmware release from BrightSign in Q2 2016)
• HDR vastly increases the color gamut to 1024 shades of each color
• The higher resolution of 4K combined with the increased luminosity and richer colors of HDR will transform the viewing experience!

• A setup feature to deploy many players at once

• Free BrightAuthor Software

Available accessories
• Wireless/Bluetooth module
• USB Button Pads
• MicroSD class 10 cards (various capacities)
