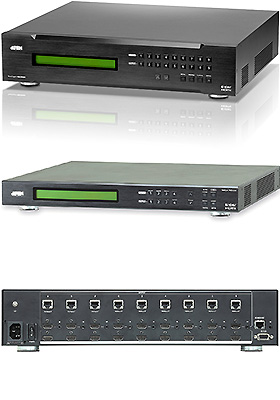

HDMI Scaling Matrix w/ HDBaseT Output
9x9 and 4x4 HDMI scaling matrix switches & video wall with AV, IR, and power over HDBaseT to extended screens, fast switching & remote control
Read more below...
9x9 and 4x4 HDMI scaling matrix switches and video wall
with fast switching and HDBaseT A/V IR and power output to extended screens
ATEN's HDMI scaling matrix switches with HDBaseT output extend uncompressed 4K / Full HD digital video, audio, IR and power via HDBaseT technology through a single CAT-6a cable up to 130/230 feet (40/70 meters).
When ATEN's HDMI scaling matrix switches with HDBaseT output are combined with VE805R receivers (purchased separately), they support both ATEN Seamless Switch™ technology and video wall functionality. ATEN's exclusive Seamless Switch™ technology employs an FPGA graphics processor to ensure continuous video streaming, real-time control and stable signal transmission across all sources. The video wall functionality allows you to create up to 18 video wall profiles for custom screen layouts through an easy-to-use web interface. The Power over HDBaseT (PoH) feature provides an ingenious way to power the VE802R receivers through the CATx cable without the need of using an additional power supply.
ATEN's HDMI scaling matrix switches with HDBaseT output offer flexibility with reliable signal distribution controlled via front-panel pushbuttons, IR, RS-232 and Ethernet (Telnet / Web GUI) connections. They are designed as a functional and integrated control system built for residential, commercial and conference center settings.
Power over HDBaseT to Improve Simplicity
The built-in HDBaseT technology allows ATEN's HDMI scaling matrix switches with HDBaseT output to extend not only ultra-HD video, audio and IR signals, but also power over a single CAT-5e cable, eliminating the need of an extra power source for receivers, thus greatly reducing the installation complexity and costs.
Bi-directional IR Channel for Flexible Control
ATEN's HDMI scaling matrix switches with HDBaseT output provide bi-directional IR channel ports for control of A/V sources locally at the matrix switch or remotely from the display side via the HDBaseT connection. This video solution is installed and controlled according to your preferences, offering an easy and flexible way to manage different source and display devices.
Customized Video Wall Layouts
When ATEN's HDMI scaling matrix switches with HDBaseT output are combined with VE805R receivers, video wall functionality is supported. Through an easy-to-use web GUI, you can quickly create video wall layouts and save up to 18 video wall profiles. The video wall function allows you to set up multiple displays that are confi gured in various layouts to show video as a single large screen - to "see what you want, how you want".
Smooth and Seamless Viewing Experience
When ATEN's HDMI scaling matrix switches with HDBaseT output are installed with VE805R receivers, the built-in scaler utilizing ATEN's FPGA technology unifies various video formats to provide continuous video streams, real-time switching and stable signal transmissions from different sources - all at once.
