HDMI, infrared (IR) and RS-232 extender over fiber-optics, 12.4 miles

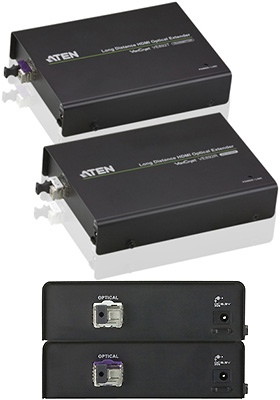

VE882 is an optical HDMI extender that overcomes the length restriction of standard HDMI cables by using optical fiber to send high definition audio and video signals over large distances.
VE882 accepts an audio-video stream from a local source and serializes the data to pass it over a single 3.125 Gbps optical link (for resolutions up to 1080p @ 60Hz at 24-bits).
VE882 can also extend the IR remote control and transfer RS-232 (up to 115kbps) in both directions, allowing you to connect serial devices such as touch screens and barcode scanners.
Features and Benefits
• Extends the transmission range of HDMI, IR and RS-232 signals using one fiber optic cable
• Very long distance transmission – up to 12.4 miles (20km)
• HDMI (3D, Deep Color), HDCP compatible – signaling rates up to 3.125 Gbits
• Superior video quality – up to 1080p @ 60Hz
• Supports full frequency IR signal from 30KHz to 60KHz (the IR receiver cable included with the package only supports 30 KHz to 56 KHz)
• Uses one fiber optic cable to connect the local and remote units
• Supports wide screen formats
• Built-in 8KV/15KV ESD protection
• Features RS-232 serial port for connecting peripherals such as touch screens, barcode scanners, etc.
• Supports bi-directional IR signal transmission, one way at a time
1x VE882T (transmitter)
1x VE882R (Receiver)
1x IR Transmitter
1x IR Receiver
1x Mounting Kit
2x Power Adapters
1x User Instructions
