KE6940T - Model No. KE6940T - KVMGalore® | Tech Solutions Made Easy™
ATEN
  • Compare to MSRP $1,200.00
  • You save$252.00
  • Our Price $948.00
For additional views click on an image below

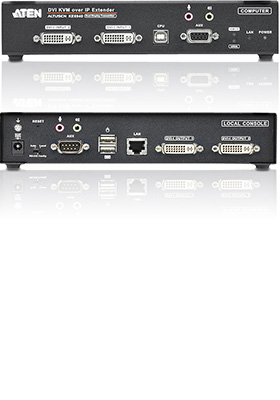

Image 1 of 4 - KE6940T, front view. view
Image 2 of 4 - KE6940T, back view. view

Image 3 of 4 view
Image 4 of 4 view

KE6940T

Model No. KE6940T In stock

KE6940T
Buy this item and earn 948 ClubPoints.

DVI dual-display KVM over IP transmitter

Note: Receiver units are purchased separately

Utilizing expertise in Over IP KVM solutions, KE6940 series is an IP based DVI KVM Extender that allows access to a computer system from a remote USB console (USB keyboard, USB mouse, DVI monitor) anywhere over an intranet.

KE6940 Dual View Extender supports two DVI displays at each end, allowing the video output to display on two monitors.

The DVI KVM Over IP Extender consists of a Transmitter unit that connects to the computer and a Receiver unit that provides console access from a separate location. The computer is accessed from the remote console over a standard TCP/IP network via Cat 5e cable that allows point-to-point, point-to-multipoint, and multipoint-to-multipoint administration. This is perfect for use in any type of installation where you need to place the console where it is convenient, but you want the computer to reside in a secure location - away from the keyboard, mouse and display in use.

As a Matrix Extender it can connect single/multiple (computers-to-consoles) in several ways:
• One-to-one (Extender mode)
• One-to-many (Splitter mode)
• Many-to-one (Switch mode), or
• Many-to-many (Matrix mode).

KE Matrix Manager® software provides advanced features for username/password authentication, autodetection of all KE6940 devices on the same subnet and define connections that can be switched and shared. New security features also provide extra protection, supporting AES-128bits encryption for secured data transmission, while RADIUS, LDAP, AD or remote user authentication provides added layer of connection security.

Download KE Matrix Manager® Lite (supporting up to 16 end-points) for FREE!

With an OSD, RS-232 support, and Auto MDIX, KE6940 is the most cost-effective and convenient way to get a full digital extension from anywhere on the intranet.

Video, AV and KVM over IP
Extend the computer's KVM console any distance over a LAN connecting the Tx and Rx units to your network. Extend computer's KVM console up to 330 feet by directly connecting the Tx and Rx units with a single CAT-5e cable.

Flexibility
KE6940 series allows you to access, share, and switch full control of Tx connected computers from any Rx (KVM console) on the network.Flexibility allows one-to-one, one-to-many, or many-to-many computer to KVM console connections.

Unprecedented Video Quality
ATEN's advanced graphics processor delivers video that ensures you will experience the same vivid and sharp quality video on the remote monitor no matter how far away the console is located.

Advanced Management Sysyem
KE Matrix Manager allows you to easily administer all KE6940 devices over a network, using an intuitive and user-friendly web-based GUI.

Point-to-Point
Extender mode: this is the simplest setup; using a single transmitter to receiver connection that extends a computer's distance from the keyboard, mouse and monitor. One-toone setup can be directly connected by a CAT-5e cable between two units - up to 330 feet.

Point-to-Multipoint
Shared connection: This setup over a network allows a remote computer (Tx) to be shared among multiple KVM consoles (Rx). Multiple KVM consoles can access the computer at the same time and you can define the access mode when this happens.

Multipoint-to-Point
Switching connections: This setup over a network allows the KVM consoles to switch access between different computers individually and symultaneously, and allows the streaming of video, audio, USB and serial connections from different computers.

Multipoint-to-Multipoint
Matrix mode: Delivering flexibility and performance ATEN's KVM over IP Extender provides the ability to access, switch, share and multicast computer resources among multiple KVM consoles across a network. This provides dynamic and flexible extender setup with superior video quality and smooth KVM operations without delays or lags.

Features and Benefits
• Remotely access computers on your KVM installation via intranet
• Dual console operation – control your system from both the transmitter and receiver USB keyboard, monitor, and mouse consoles
• RS-232 serial ports – allows you to connect to a serial terminal for configuration, and serial devices such as touchscreens and barcode scanners
• Superior video quality – up to 1920x1200 @ 60 Hz; 24-bit color depth
• Supports standard VGA resolutions from 640x480 to 1920x1200 at 60Hz
• OSD (On Screen Display) on the Receiver configures both units
• Supports AP GUI operation
• Remote login security
• DVI digital and analog monitor support
• Built-in 8KV/15KV ESD protection and 2KV surge protection
• Supports stereo speakers and stereo microphone
• Auto-MDIX - automatically detects cable type
• Supports widescreen formats
• Supports high-quality video streaming
• Virtual media support
• Hot pluggable
• Rack Mountable
• Upgradeable firmware

Package Contents
1x KE6940T DVI KVM Over IP Extender (Transmitter)
1x Power Adapter
1x USB KVM Cable
1x DVI-D Cable 2m
1x Mounting Kit for KE6940T
1x User Instruction
