Simultaneously Display Video Signals from Two Different Computers or Video Sources on a Single Screen.
SPLITMUX® Dual Screen Splitter allows you to simultaneously display and monitor video signals from two different computers or video sources on a single screen. Additionally, the SPLITMUX-SVDVI-2 works as a video wall processor, video scaler, PiP generator, and video switch.

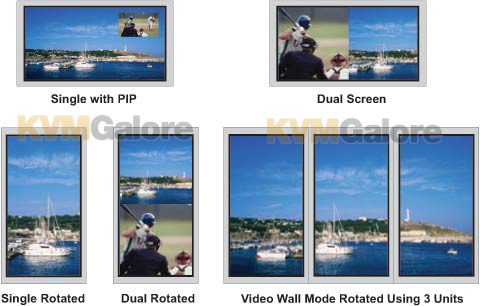

Display Modes
Dual Mode: In dual mode, the screen is split into two fields of equal size each displaying the entire contents of both video sources.
Full Screen Mode: In full screen mode, one of the video sources is displayed in full screen size and maximum resolution.
Picture in Picture (PIP) Mode
• In PIP mode, the full screen display of one of the two video sources is accompanied by a small image (thumbnail) of the other video source allowing simultaneous monitoring.
• Translucent overlays maximize main image size while still seeing PiP
Video Wall Mode
• Connect multiple units to create a video wall.
o A SPLITMUX-SVDVI-2 is required for each connected display within a video wall.
+ Use SPLITMUX-LOOP-KIT to loop multiple units together for a single point of control.
o Depending on input and output resolutions, video walls up to 32x32 can be created.
Built-In Control
Front Panel Interface: Use front panel buttons to locally change ports or to select a display mode.
RS232
• Configuration and control can be done through the serial port.
• Female 6-pin miniDIN F (DB9 adapter included.)
• Baud rate: 2400 through 115200 bps
IR Remote Control
• Configuration and control can be done using the IR remote control.
• The remote is addressable for installing with multiple units.
On Screen Display (OSD)
• Select display modes and video sources with On Screen Display (OSD).
• Use the front panel buttons or IR remote control to operate the OSD.
• OSD controls for OSD position, dual mode, PIP mode, brightness, contrast, phase, Horz- and Vert-center alignment adjustment and image rotation.
Features and Benefits
• Accepts digital and analog video inputs through a combination DVI/ RGBHV/ YPbPr connector and combination S-Video/Composite connector.
• Supports resolutions up to 1900x1200 and can de-interlace 1080i to 1080p.
• Dual, Picture in Picture and Full Screen display modes.
• Ability to rotate, stretch and crop multiple images.
• Ideal solution for many applications, including digital signage, trade shows, retail displays, videoconferencing and security applications.
• Connect multiple units to create a video wall as large as 32x32 screens.
• Control the unit through IR remote control, front panel interface or RS232 commands.
• Warranty: 2 years
Package Includes

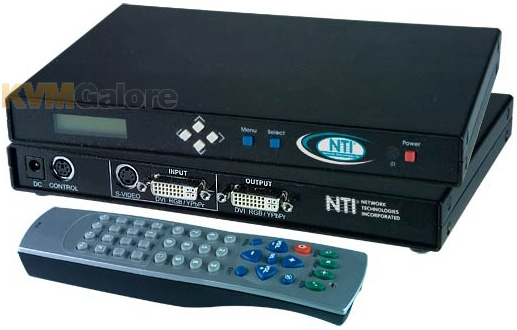

• SPLITMUX Dual Screen Splitter.
• Power supply.
• IR remote control.
• One S-Video to Composite Video Adapter Cable - one male 4-pin miniDIN connector to three RCA jacks.
• One RS232 adapter cable - one male 6-pin miniDIN connector to one male DB9 connector.
• User manual.
